C78ENTM55.12

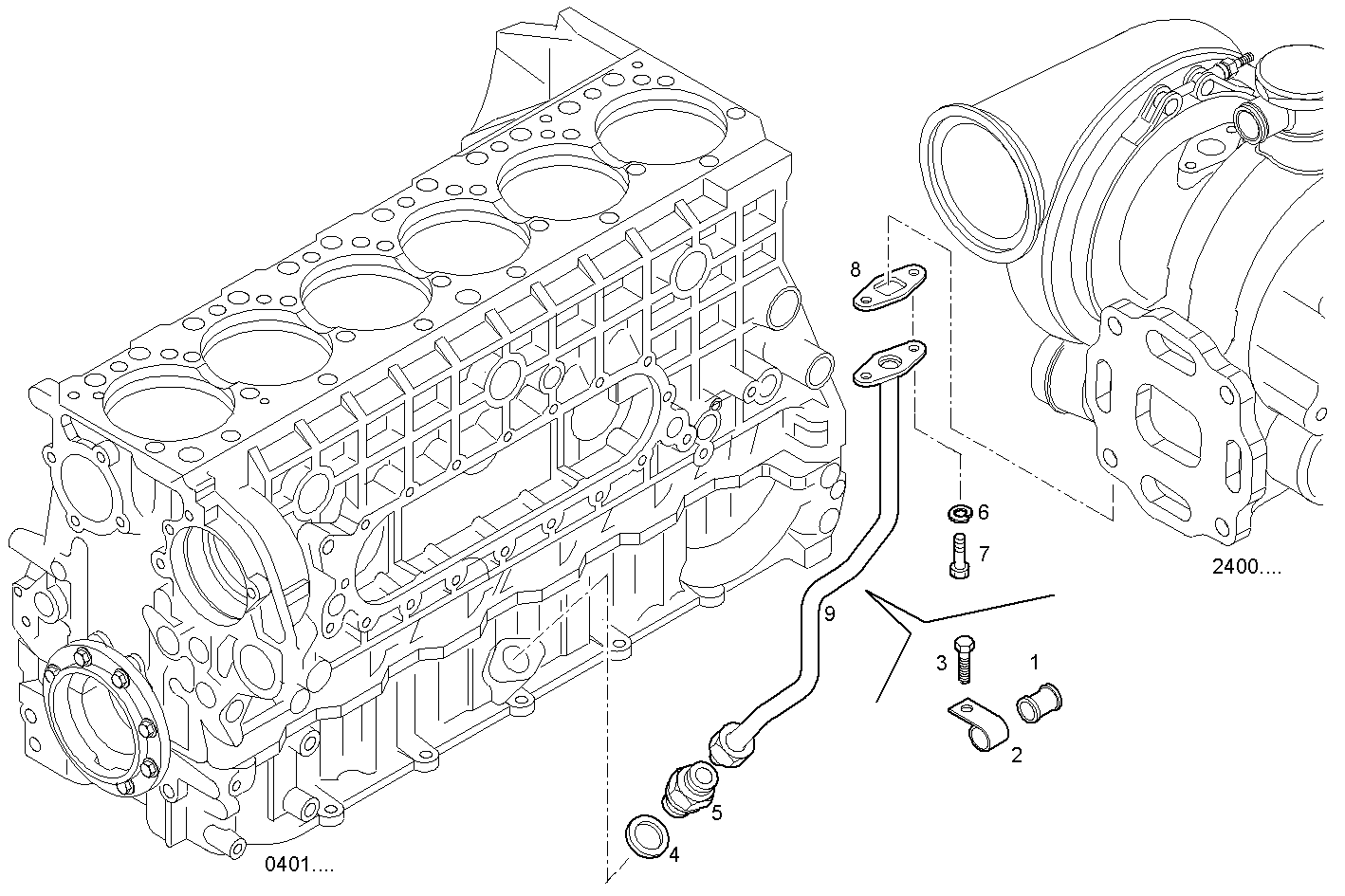

3065.025 RETURN OIL LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 4747140 | RUBBER PAD |
| 2 | 8033225 | CLIP |
| 3 | 16598224 | HEXAGON BOLT M8X90 MM |
| 4 | 18064760 | GASKET Ø30X36 MM |
| 5 | 8031297 | THREADED UNION |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605625 | HEXAGON BOLT M8X25 |
| 8 | 98412509 | FLAT ENGINE GASKET |
| 9 | 8039588 | OIL LINE |
