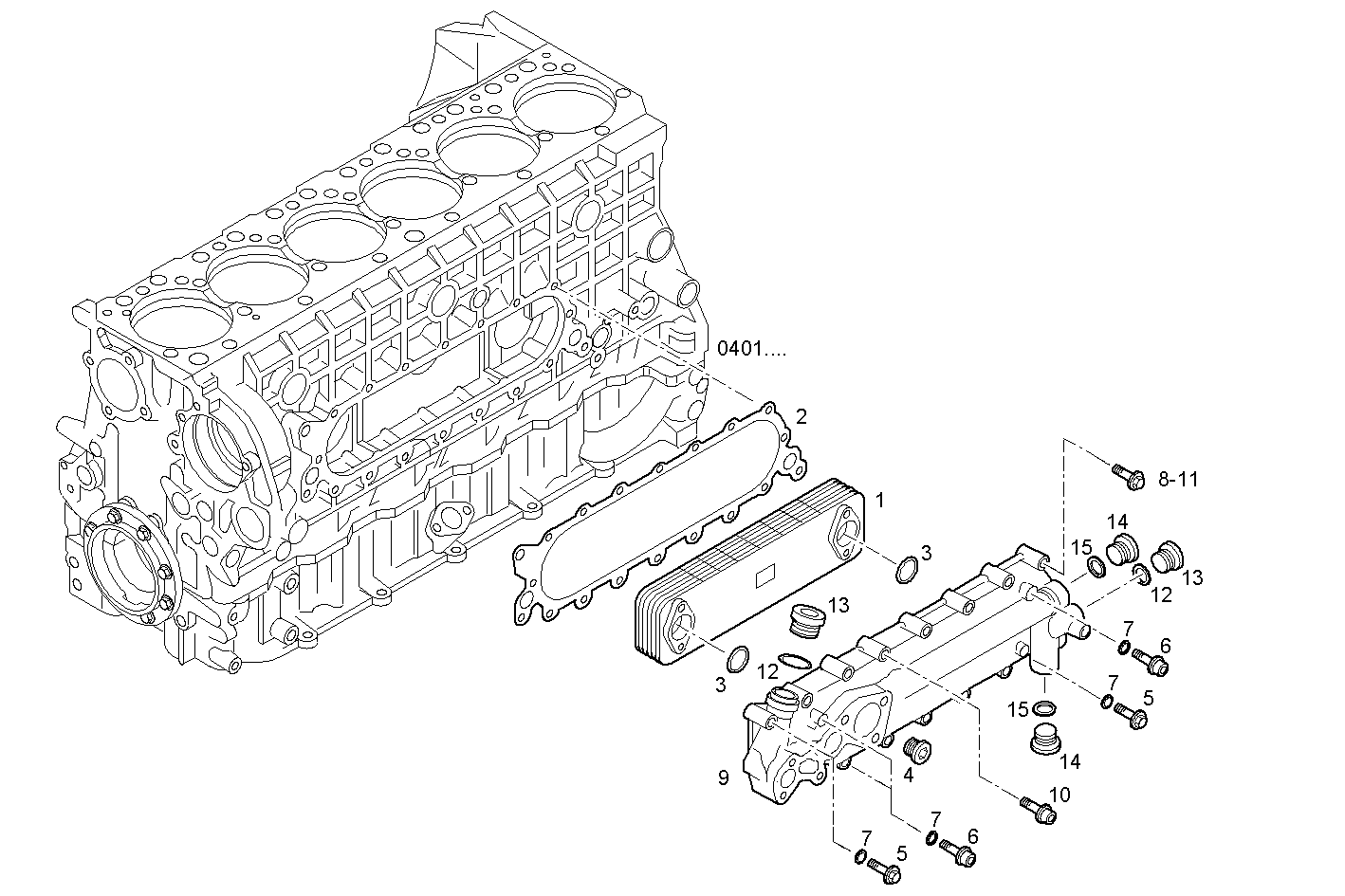

3150.035 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 500301692 OIL COOLER
2 98497873 FLAT ENGINE GASKET
3 17283581 O-RING Ø44,12 MM SP=2,62 MM
4 99433799 THREADED PLUG M32X1,5
5 16586925 HEXAGON BOLT M8X50 MM
6 16586625 HEXAGON BOLT M8X35 MM
7 99489014 SEAL GASKET Ø7 MM
8 16598224 HEXAGON BOLT M8X90 MM
9 504106451 HEAT EXANGER BODY
10 16586725 HEXAGON BOLT M8X1.25X40 MM
11 16598624 HEXAGON BOLT M8X1,25X140 MM
12 99432291 SEAL GASKET Ø28 MM
13 16993511 LOCK PLUG M28X1,5
14 16993711 THREADED PLUG M35X1,5
15 99469380 SEAL GASKET Ø35 MM
