C87ENTX20.00

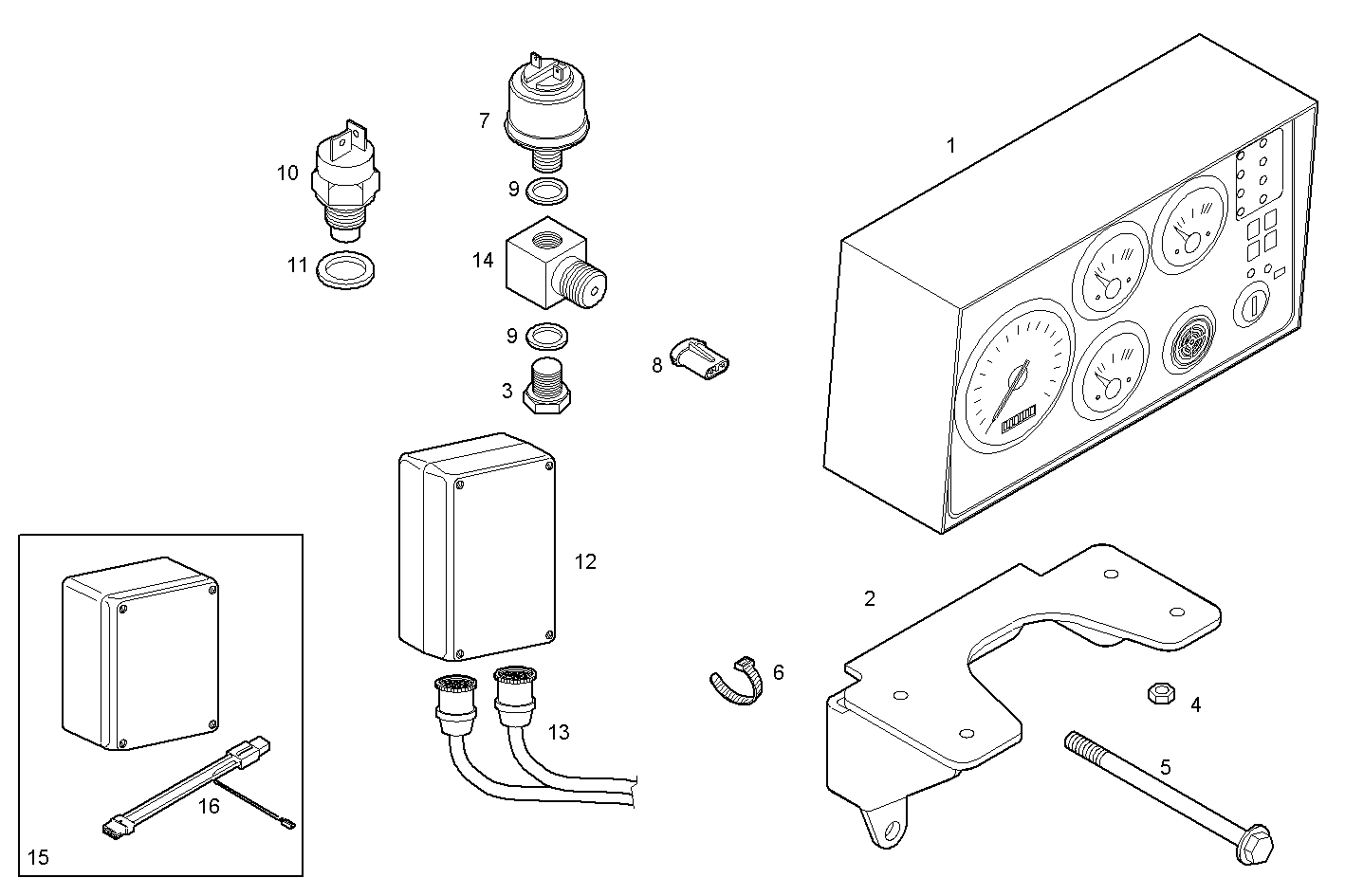

A38780531 MANUAL CONTROL BOARD
| Item | Part number | Description |
|---|---|---|
| 1 | 8044420 | CONTROL BOARD ASSY |
| 2 | 8047581 | SUPPORT |
| 3 | 16992340 | THREADED PLUG M14X1,5 |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 16599324 | HEXAGON BOLT M10X150 MM |
| 6 | 14560187 | CABLE STRAP |
| 7 | 8044413 | PRESSURE PICK-UP |
| 8 | 8045092 | CONNECTION |
| 9 | 98474308 | SEAL GASKET Ø14X22 MM |
| 10 | 8042846 | TRANSMITTER TATA |
| 11 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 12 | 8047353 | SWITCHGEAR |
| 13 | 8044865 | ENGINE HARNESS |
| 14 | 8046561 | PIPE SOCKET |
| 15 | 8052675 | SWITCHGEAR |
| 16 | 8052686 | WIRE/CABLE |
