C87ENTX20.00A002

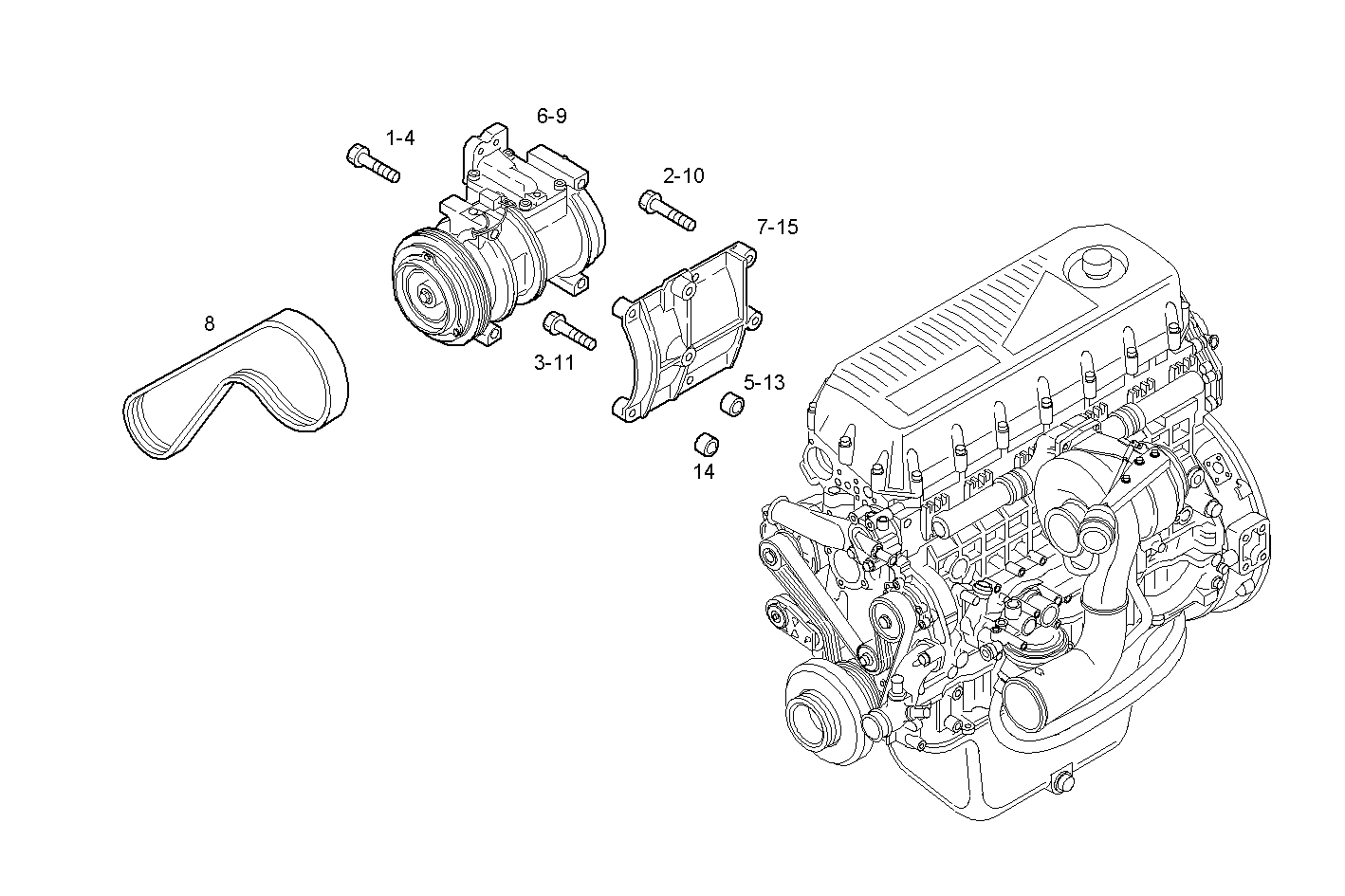

A81000508 COMPRESSOR AIR CONDITIONING
Item | Part number | Description |
---|---|---|
1 | 16592625 | HEXAGON BOLT M8X80 MM |
2 | 16587425 | HEXAGON BOLT M10X40 MM |
3 | 16587125 | HEXAGON BOLT M10X25 MM |
4 | 16598224 | HEXAGON BOLT M8X90 MM |
5 | 98405462 | DOWEL PIN Ø10,2 MM |
6 | 504221553 | AIR COND.COMPRESS. ASSY |
7 | 504165038 | SUPPORT |
8 | 504145203 | V-BELT |
9 | 504228992 | AIR COND.COMPRESS. ASSY [FROM 05/05/08] |
10 | 16587424 | HEXAGON BOLT M10X40 MM |
12 | 16593224 | HEXAGON BOLT M12X1,7X80 MM |
13 | 99435557 | DOWEL PIN Ø8,5 MM |
14 | 504277279 | DOWEL PIN |
15 | 504265945 | SUPPORT [FROM 05/05/08] |
