C87ENTX20.00A003

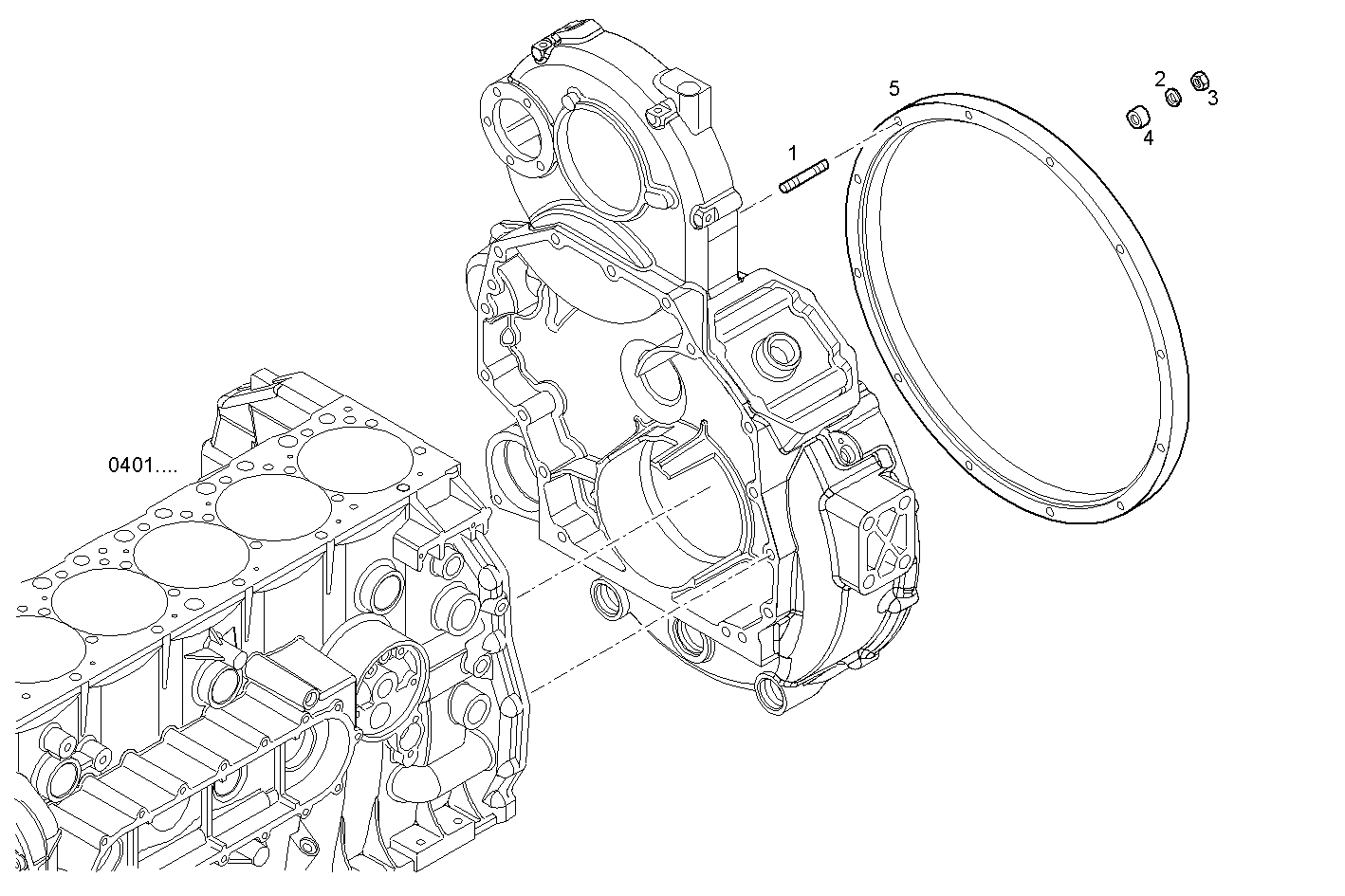

0432.041 REAR C.CASE COVER
| Item | Part number | Description |
|---|---|---|
| 1 | 16732224 | STUD M10X80 MM |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 17038131 | HEXAGON NUT M10 |
| 4 | 8101556 | SPACING BAR SP=13,00 MM |
| 5 | 4931829 | SPACING BAR |
