C87ENTX20.00A003

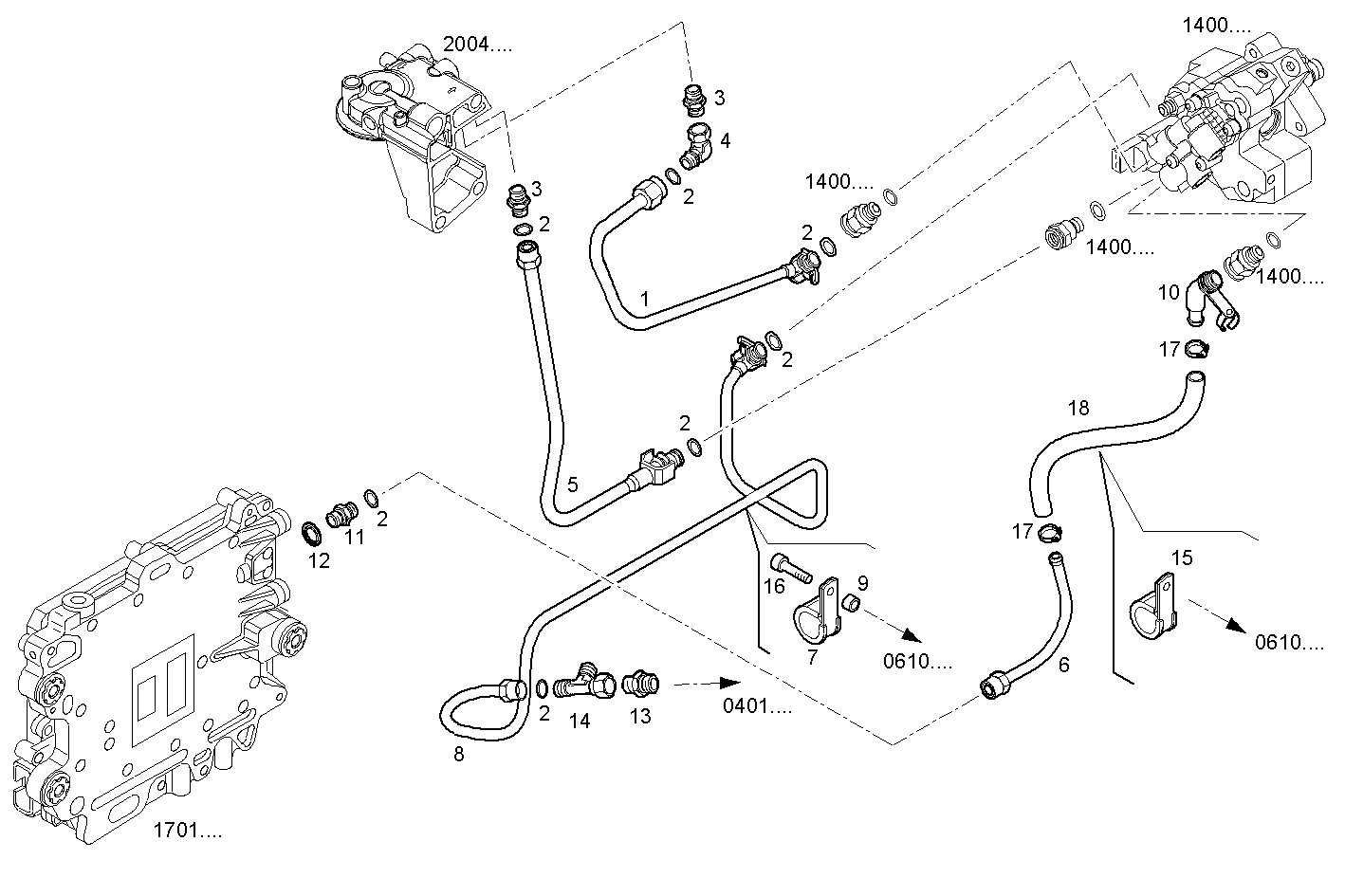

2030.332 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 504127214 FUEL LINE ASSY
2 4894095 O-RING
3 504081275 THREADED UNION
4 16503914 ELBOW COUPLING M14X1,5
5 504160371 FUEL LINE ASSY
6 8047121 FUEL LINE
7 99453771 RETAINER
8 504181184 FUEL LINE ASSY
9 8580153 SPACING BAR
10 8034419 ELBOW COUPLING
11 41033485 THREADED UNION
12 98474309 WASHER Ø16X24 MM SP=1,9 MM
13 41034988 THREADED UNION M12X1,5/M14X1,5
14 16504614 T-COUPLING M14X1,5
15 500391414 FASTENING BRACKET
16 16692124 CYLIND-HEAD SCREW M10X25 MM (8.8)
17 18088294 CLIP
18 17724587 RUBBER HOSE Ø7,5X14,5 MM
