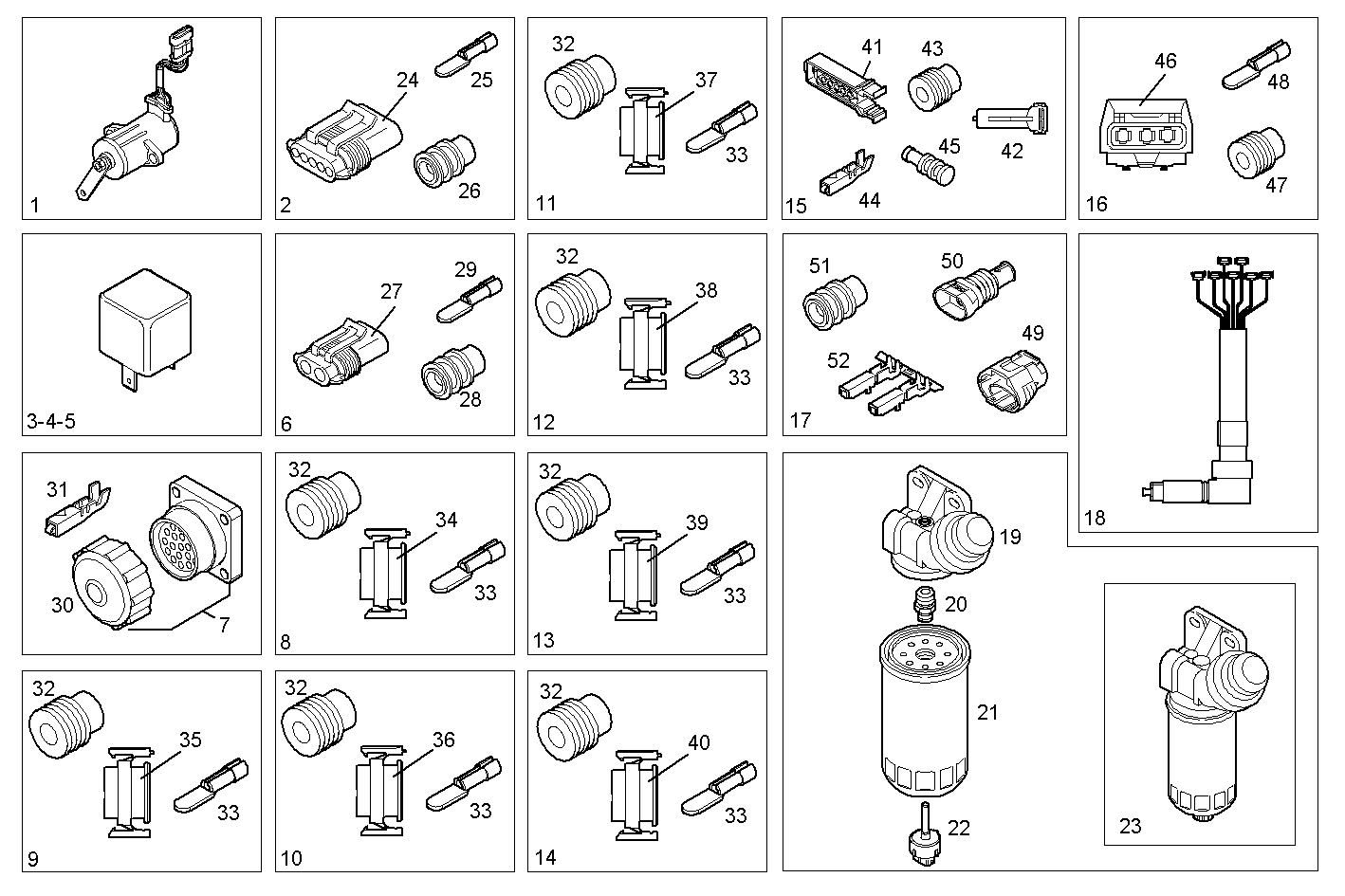

| Item |
Part number |
Description |
|
1 |
500388702 |
TRANSMITTER acceler.pedal position |
|
2 |
8031313 |
WIRE CONNECTOR assy 5 pin female |
|
3 |
500334927 |
DIODE PLATE |
|
4 |
504040825 |
DIODE PLATE |
|
5 |
500362250 |
RELAY 50A 24V |
|
6 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
7 |
8034787 |
WIRE CONNECTOR ASSY |
|
8 |
8042735 |
WIRE CONNECTOR assy 19 pin male -pin layout H |
|
9 |
8042730 |
WIRE CONNECTOR assy 19 pin male -pin layout D |
|
10 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
11 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
12 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
13 |
8032281 |
WIRE CONNECTOR assy 10 pin male -pin layout G |
|
14 |
8032282 |
WIRE CONNECTOR assy 10 pin male -pin layout E |
|
15 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
16 |
8030575 |
CONNECTION ASSY |
|
17 |
8036219 |
WIRE CONNECTOR |
|
18 |
8042255 |
SET OF WIRING |
|
19 |
42545573 |
FUEL FILT.SUPPORT |
|
20 |
42545574 |
THREADED UNION |
|
21 |
2992662 |
FUEL FILTER ELEM. |
|
22 |
42540203 |
SENSOR WATER |
|
23 |
504057743 |
PREFILTER ASSY |
|
24 |
12332087 |
WIRE CONNECTOR |
|
25 |
12331654 |
TERMINAL |
|
26 |
12332885 |
GASKET |
|
27 |
12331387 |
CONNECTION |
|
28 |
4861936 |
RUBBER BUSH YELLOW |
|
29 |
98435372 |
TERMINAL |
|
30 |
8033302 |
CAP |
|
31 |
99462549 |
TERMINAL |
|
32 |
4861937 |
RUBBER BUSH |
|
33 |
4863438 |
TERMINAL |
|
34 |
4859428 |
WIRE CONNECTOR |
|
35 |
4859429 |
WIRE CONNECTOR |
|
36 |
4859430 |
CONNECTION 19 pin male - black colour |
|
37 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
38 |
4859431 |
CONNECTION 19 pin male - white colour |
|
39 |
4859419 |
CONNECTION 10 pin male - white colour |
|
40 |
4859418 |
CONNECTION 10 pin male - black colour |
|
41 |
500363489 |
WIRE CONNECTOR |
|
42 |
500363578 |
COVER |
|
43 |
500363737 |
RUBBER BUSH |
|
44 |
500363580 |
TERMINAL |
|
45 |
500395785 |
RUBBER BUSH |
|
46 |
12330587 |
WIRE CONNECTOR |
|
47 |
12329982 |
GASKET |
|
48 |
12330144 |
TERMINAL |
|
49 |
99465498 |
CONNECTION |
|
50 |
99476793 |
CAP |
|
51 |
99465962 |
RUBBER BUSH |
|
52 |
99465966 |
TERMINAL |
