C87ENTY20.00

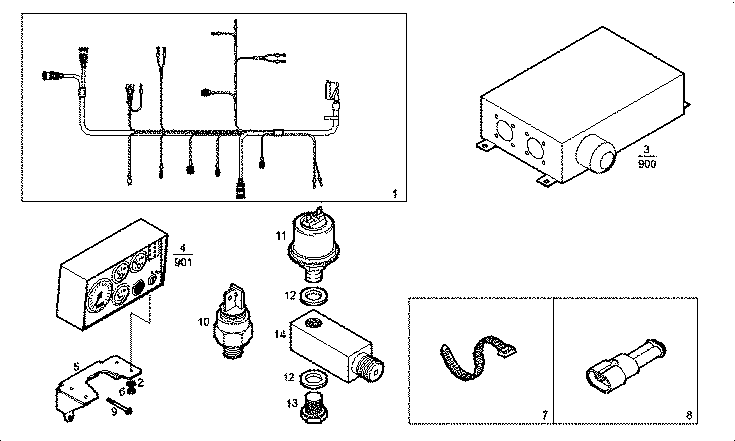

130402 MANUAL CONTROL BOARD - OPTION A38780531
| Item | Part number | Description |
|---|---|---|
| 1 | 8044865 | ENGINE HARNESS |
| 2 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 3 | 8052675 | SWITCHGEAR |
| 4 | 8044420 | CONTROL BOARD ASSY |
| 5 | 8047581 | SUPPORT |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 14560187 | CABLE STRAP |
| 8 | 8045092 | CONNECTION |
| 9 | 16599325 | HEXAGON BOLT M10X150 |
| 10 | 8042846 | TRANSMITTER TATA |
| 11 | 8044413 | PRESSURE PICK-UP |
| 12 | 98474308 | SEAL GASKET Ø14X22 MM |
| 13 | 16992340 | THREADED PLUG M14X1,5 |
| 14 | 8046561 | PIPE SOCKET |
