C87ENTY22.00

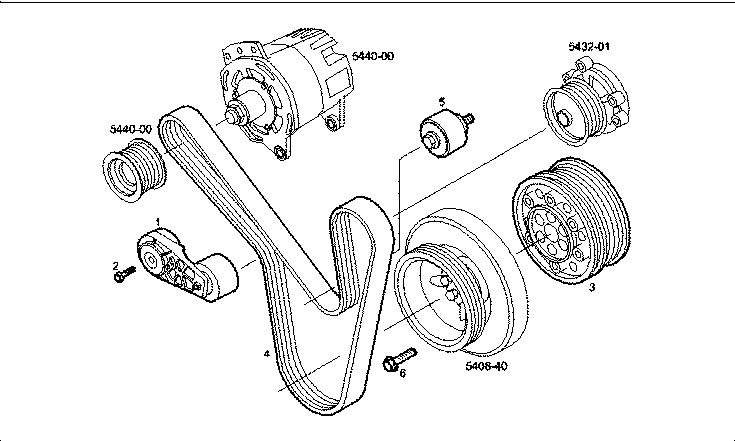

101662 DRIVING PULLEY
| Item | Part number | Description |
|---|---|---|
| 1 | 504046191 | BELT TENSIONER |
| 2 | 16676834 | HEXAGON BOLT M10X70 MM |
| 3 | 500355649 | PULLEY |
| 4 | 500328020 | V-BELT |
| 5 | 504006261 | BELT TENSIONER ASSY |
| 6 | 500354585 | SCREW |
