C87ENTY22.00

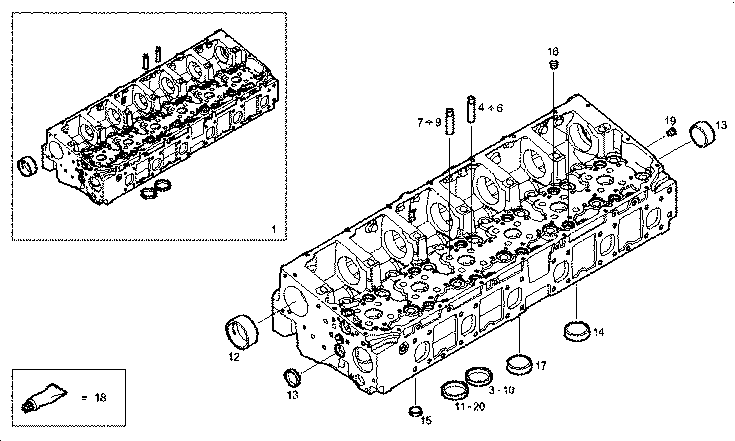

114769 CYLINDER HEAD-COVERS

Iveco/FPT CYLINDER HEAD-COVERS

Item Part number Description
1 5801382527 CYLINDER HEAD ASSY
3 504362736 VALVE SEAT +0,20 (ENGINE) (F EXHAUST
4 504361838 VALVE GUIDE STD. (F EXHAUST
5 504361839 VALVE GUIDE +0,2 (F EXHAUST
6 504361840 VALVE GUIDE +0,4 (F EXHAUST
7 504361843 VALVE GUIDE STD. (F INTAKE
8 504361844 VALVE GUIDE +0,2 (F INTAKE
9 504361845 VALVE GUIDE +0,4 (F INTAKE
10 504362737 VALVE SEAT STD. (ENGINE) (F EXHAUST
11 504361850 VALVE SEAT STD. (ENGINE) (F INTAKE
12 504125778 BUSH
13 16990870 LOCK PLUG Ø28 MM
14 16991370 LOCK PLUG Ø45 MM
15 14282170 LOCK PLUG Ø20 MM
16 504344694 PLUG Ø25 MM
17 16991170 LOCK PLUG Ø36 MM
18 2992693 ADHESIVE/STICKER
19 504051237 THREADED PLUG DIAM=1/4"
20 504361851 VALVE SEAT +0,20 (ENGINE) (F INTAKE
