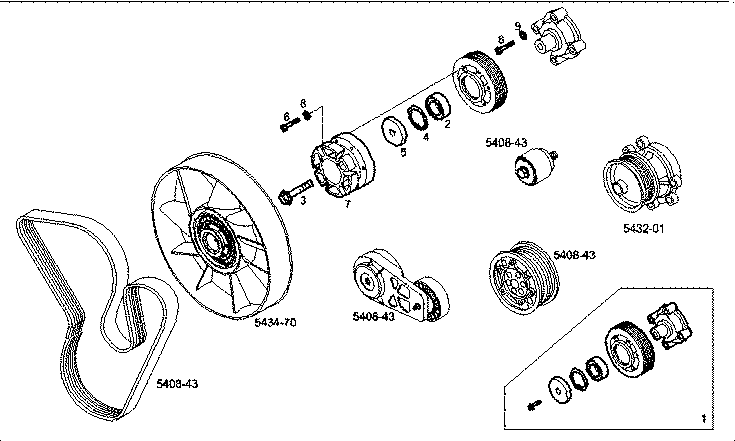

12574 VENTILATOR CONTROL

Iveco/FPT VENTILATOR CONTROL

Item Part number Description
1 99469717 SUPPORT ASSY
2 98427607 ENGINE BEARINGS
3 16676934 HEXAGON BOLT M10X1,5X80 MM
4 16874776 CIRCLIP Ø85,5 MM [from 10-92]
5 99474237 WASHER
6 16691124 SOCKET-HEAD SCREW M8X50 MM
7 500383488 SPACING BAR
8 17094914 WASHER 8x16
9 17096824 WASHER Ø8,40X15 MM
