Catalogue Menu

C87ENTY22.00
129725 SYSTEM-ELECTRICAL

Iveco/FPT SYSTEM-ELECTRICAL

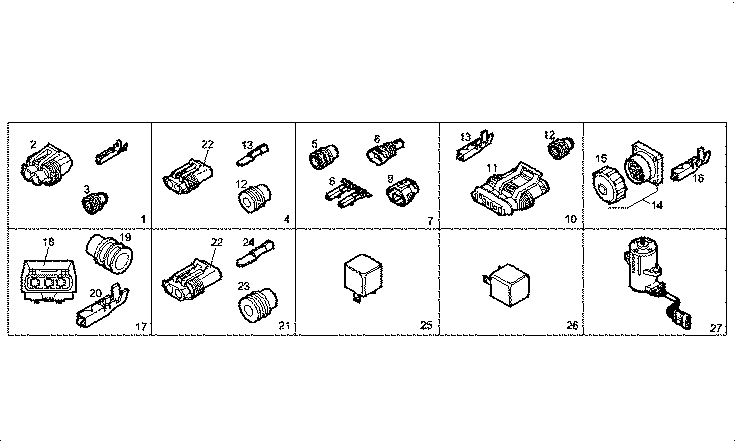

Item Part number Description
1 8030571 WIRE CONNECTOR assy 2 pin female - packard
2 12330587 WIRE CONNECTOR
3 12329982 GASKET
4 8030573 CONNECTION ASSY
5 99465962 RUBBER BUSH
6 99465966 TERMINAL
7 8036219 WIRE CONNECTOR
8 99476793 CAP
9 99465498 CONNECTION
10 8031313 WIRE CONNECTOR assy 5 pin female
11 12332087 WIRE CONNECTOR
12 12332885 GASKET
13 12331654 TERMINAL
14 8034787 WIRE CONNECTOR ASSY
15 8033302 CAP
16 99462549 TERMINAL
17 8030575 CONNECTION ASSY
18 99430234 PLUG COUPLING
19 4835259 GASKET
20 12309290 TERMINAL
21 8030574 WIRE CONNECTOR ASSY [UP TO 27-06-05]
22 12331387 CONNECTION
23 4861936 RUBBER BUSH YELLOW
24 98435372 TERMINAL
25 500362250 RELAY 50A 24V
26 504040825 DIODE PLATE
27 500388702 TRANSMITTER acceler.pedal position
