C87ENTY22.00

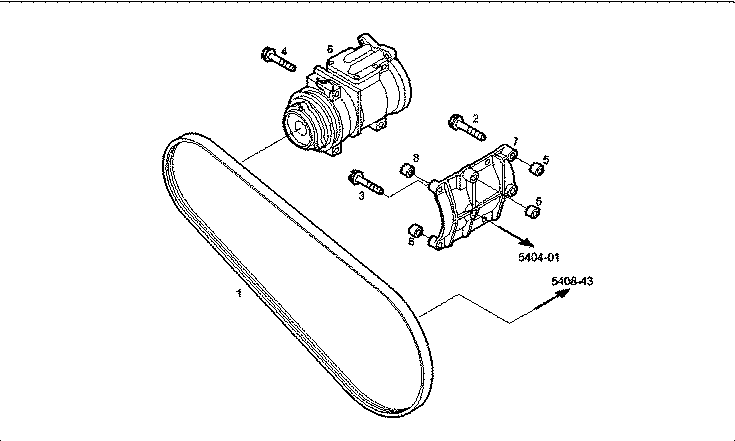

132032 COMPRES. AIR CONDIT. - OPTION A81000508
Item | Part number | Description |
---|---|---|
1 | 504146539 | V-BELT |
2 | 16587525 | HEXAGON BOLT M10X45 MM |
3 | 16587225 | HEXAGON BOLT M10X30 MM |
4 | 16598224 | HEXAGON BOLT M8X90 MM |
5 | 98405462 | DOWEL PIN Ø10,2 MM |
6 | 504385144 | AIR COND.COMPRESS. ASSY |
7 | 99435555 | SUPPORT |
8 | 99435557 | DOWEL PIN Ø8,5 MM |
