C87ENTY22.00

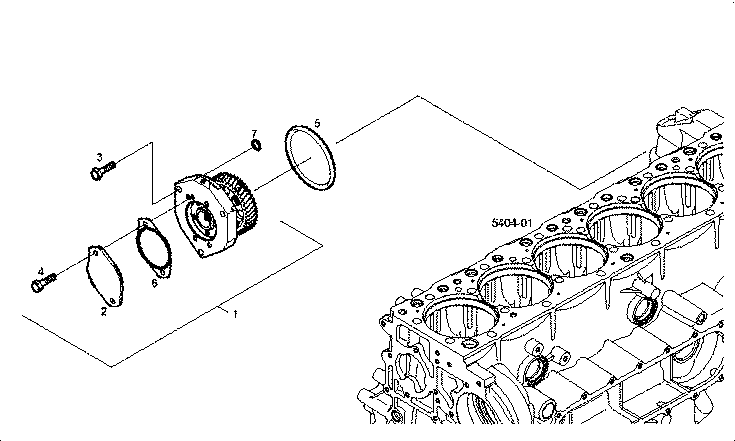

132095 ASSEMBLY DRIVE - OPTION A09280510

Iveco/FPT ASSEMBLY DRIVE - OPTION A09280510

Item Part number Description
1 8045490 POWER TAKE OFF
2 504024782 COVER
3 16678135 HEXAGON BOLT M12X45 MM
4 18139424 HEXAGON BOLT M10X20 MM
5 17292281 O-RING Ø126,59 MM SP=3,53 MM
6 504024783 FLAT ENGINE GASKET
7 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
