C87ENTY22.00

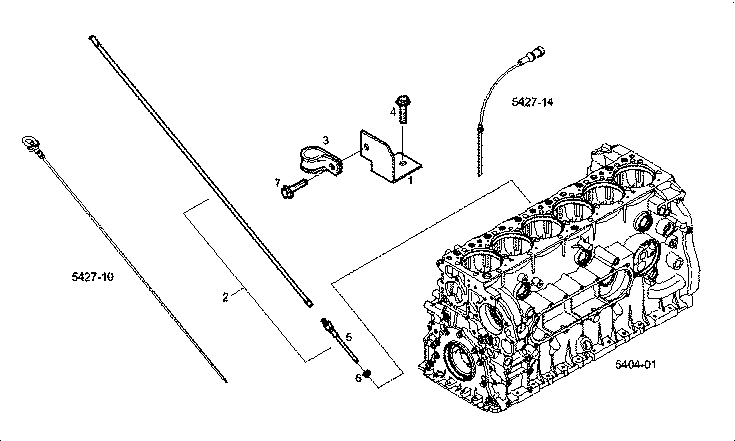

98186 OIL DIPSTICK PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 4791406 | RETAINER |
| 2 | 504323917 | OIL LEVEL TUBE |
| 3 | 17316699 | PIPE CLIP Ø14 MM |
| 4 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 5 | 504323023 | THREADED UNION |
| 6 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 7 | 16707034 | CYLIND-HEAD SCREW M8X16 MM |
