C87ENTY22.00A001

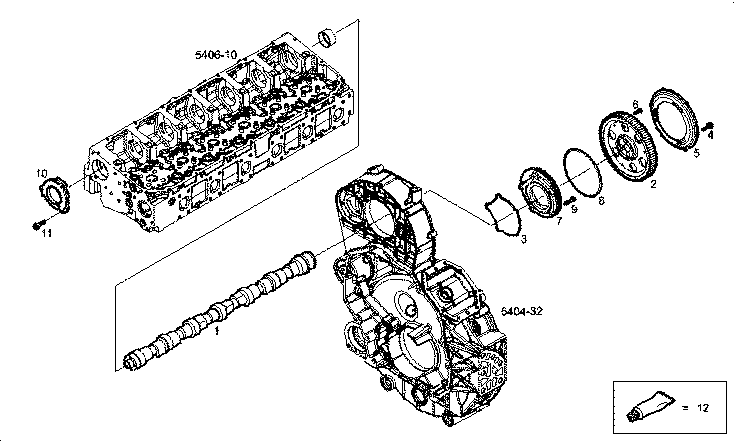

129702 TIMING - FROM S/N: 25343
| Item | Part number | Description |
|---|---|---|
| 1 | 504254723 | CAMSHAFT |
| 2 | 504385205 | CAMSHAFT PINION |
| 3 | 17290781 | O-RING Ø78,97X3,53 MM |
| 4 | 5801472223 | HEXAGON BOLT |
| 5 | 504378920 | PLATE |
| 6 | 16676135 | HEXAGON BOLT M10X45 MM |
| 7 | 504127775 | COVER REAR |
| 8 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 9 | 16586625 | HEXAGON BOLT M8X35 MM |
| 10 | 504360534 | COVER FRONT |
| 11 | 16690525 | BANJO BOLT |
| 12 | 2995644 | ADHESIVE/STICKER |
