C87ENTY22.00A001

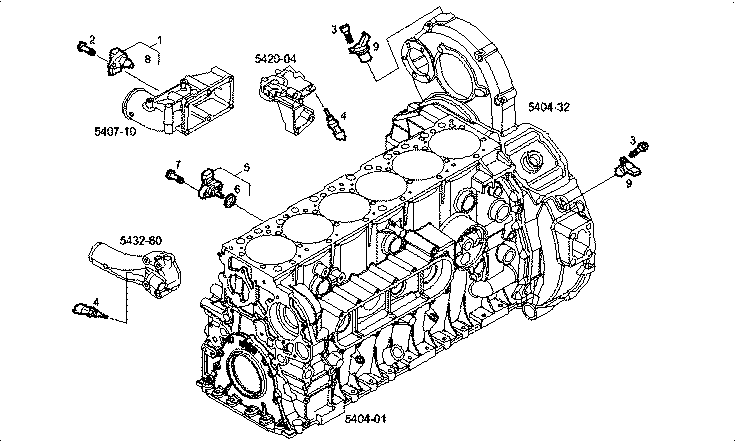

98122 SENSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 2 | 16597225 | HEXAGON BOLT M6X18 MM |
| 3 | 16589024 | HEXAGON BOLT M14X35 MM |
| 4 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 5 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
| 6 | 4895477 | O-RING |
| 7 | 4899110 | HEXAGON BOLT |
| 8 | 42546555 | O-RING [FROM # 158928] |
| 9 | 504096645 | SENSOR |
