C87ENTY22.00A001

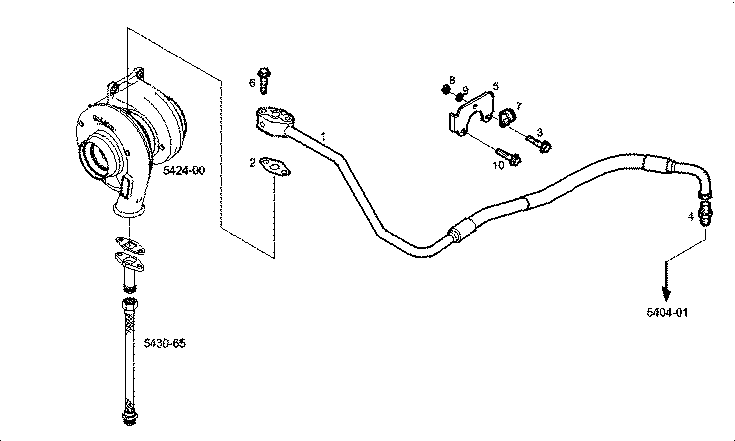

98223 OIL DELIVERY LINE
Item | Part number | Description |
---|---|---|
1 | 504188873 | OIL LINE |
2 | 5801417018 | FLAT GASKET ENGINE |
3 | 16586325 | HEXAGON BOLT M8X20 MM |
4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
5 | 504213767 | RETAINER |
6 | 16586625 | HEXAGON BOLT M8X35 MM |
7 | 99453771 | RETAINER |
8 | 17037925 | HEXAGON NUT M8X1,25 |
9 | 16666716 | WASHER |
10 | 16691424 | HEXAGON BOLT M8X65 |
