CURSOR10TE1D.A008

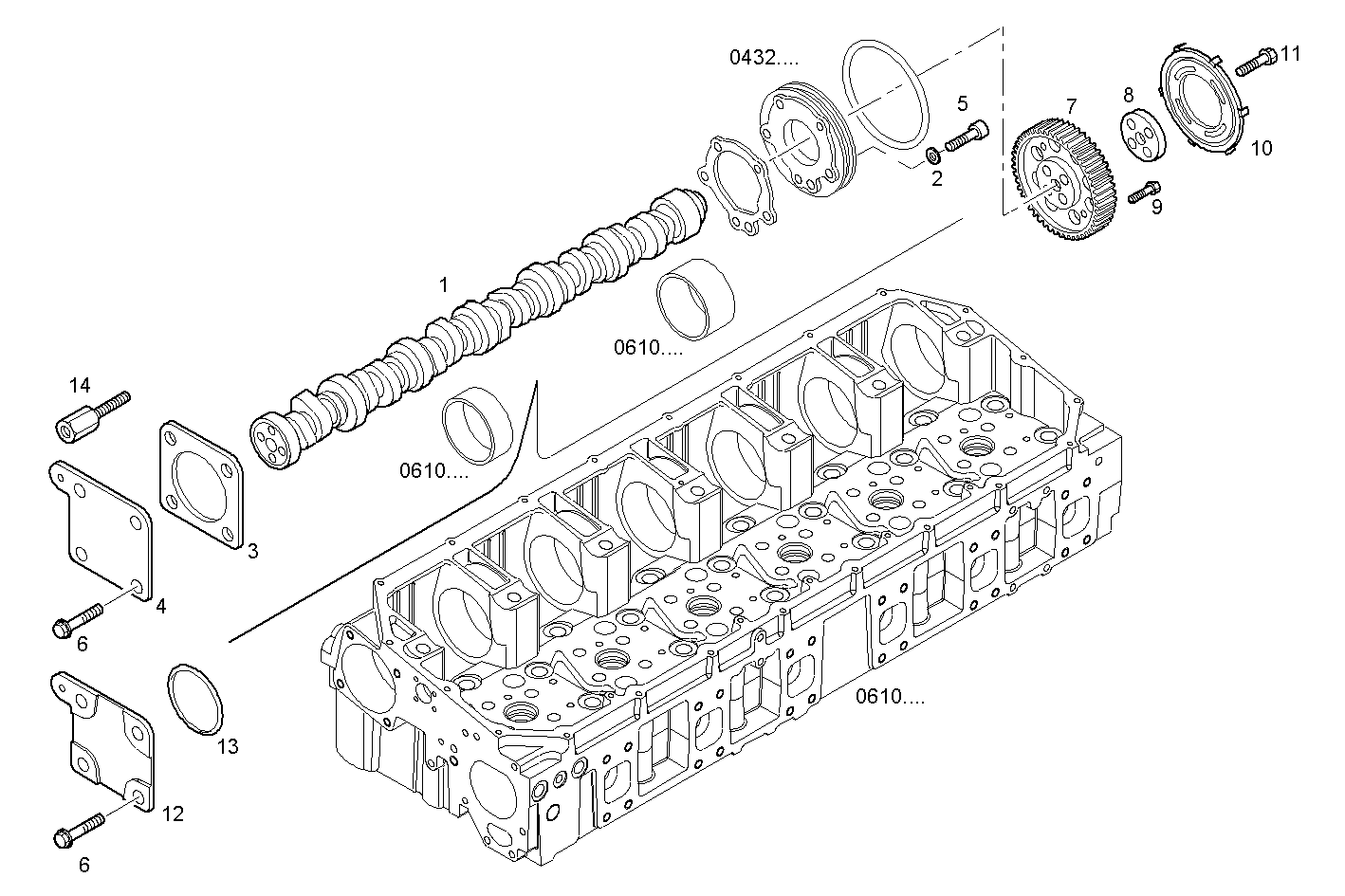

1250.007 TIMING PARTS

Iveco/FPT TIMING PARTS

Item Part number Description
1 504004779 CAMSHAFT
2 17096824 WASHER Ø8,40X15 MM
3 500370033 FLAT ENGINE GASKET [UP TO # 73308]
4 504204255 COVER [FROM # 73309]
5 16690625 CYLIND-HEAD SCREW M8X25 MM
6 16587125 HEXAGON BOLT M10X25 MM
7 99450035 CAMSHAFT PINION
8 98496024 SPACING BAR
9 99431774 BIG-END BOLT
10 500336396 PLATE
11 500397562 HEXAGON BOLT M6X1X22 MM
12 500370032 COVER [UP TO # 73308]
13 17290781 O-RING Ø78,97X3,53 MM
14 504093610 THREADED BUSH M8X1,25/M10X1,5 [FROM # 89378]
