Catalogue Menu

CURSOR10TE1D.A008

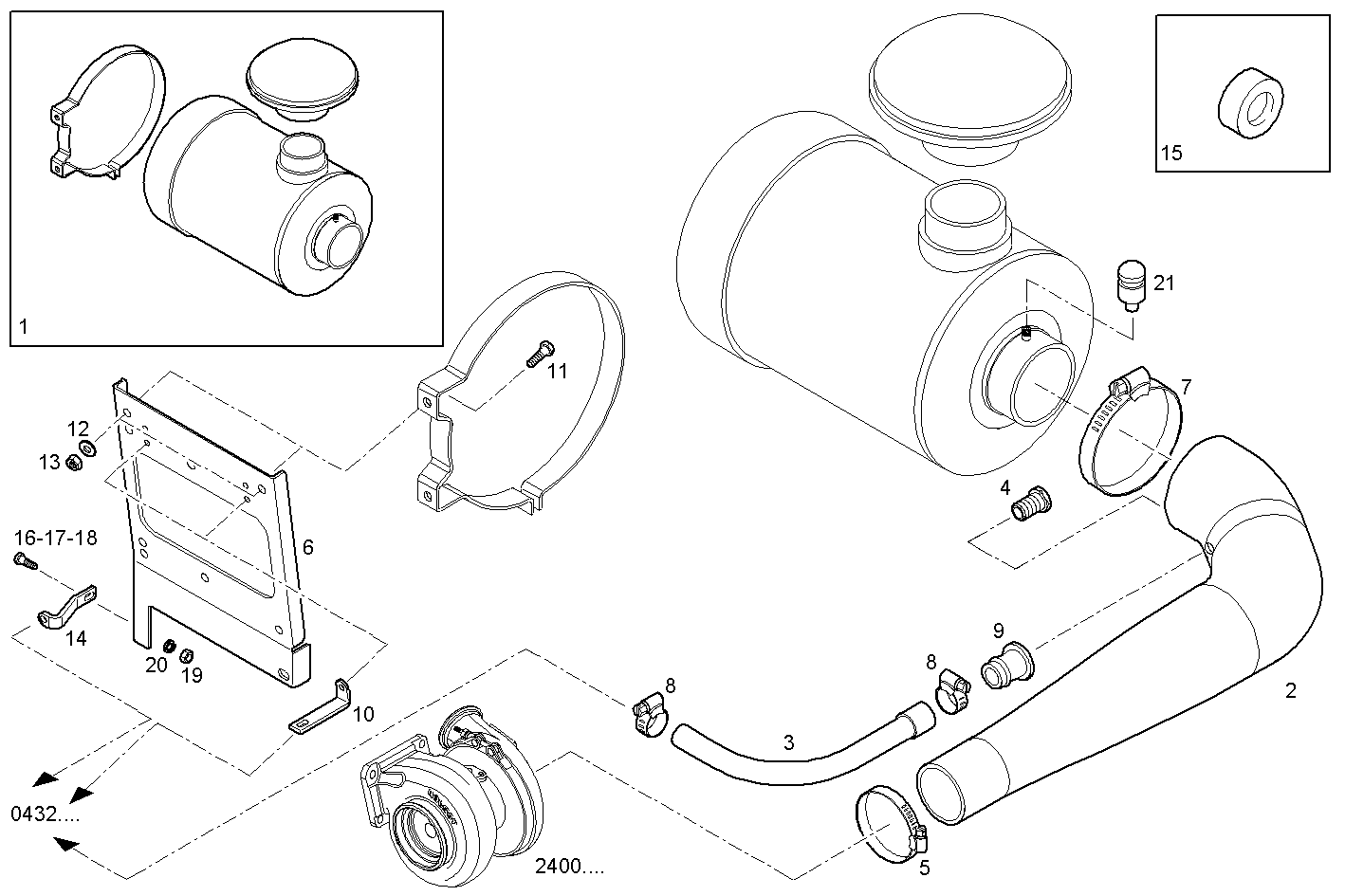

A21210556 AIR CLEANER - plastic body [FROM ...] [FROM ...]

Iveco/FPT AIR CLEANER

Item Part number Description
1 8051481 AIR CLEANER ASSY
2 8042721 FILTER HOSE
3 8041545 RUBBER SLEEVE
4 8015132 PIPE SOCKET
5 17765494 CLIP dia. = 100/120
6 8051484 SUPPORT
7 17766092 CLIP Ø160/180 MM
8 17764791 CLIP Ø32/50 MM
9 8015133 PIPE SOCKET
10 8040928 RETAINER
11 16609824 HEXAGON BOLT M12X1,75X25 MM
12 17091074 WASHER Ø12X24X2,8 MM
13 17038425 HEXAGON NUT M12 (8)
14 8040927 RETAINER
15 17816214 SPACER Ø10X8,5X18 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 16605724 SCREW M8X1,25X30
18 16605424 SCREW M8X16 MM (8.8)
19 17037925 HEXAGON NUT M8X1,25
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
21 8027294 CHOCKED FILTER INDIC. MECHANICAL
