CURSOR10TE1D.A008

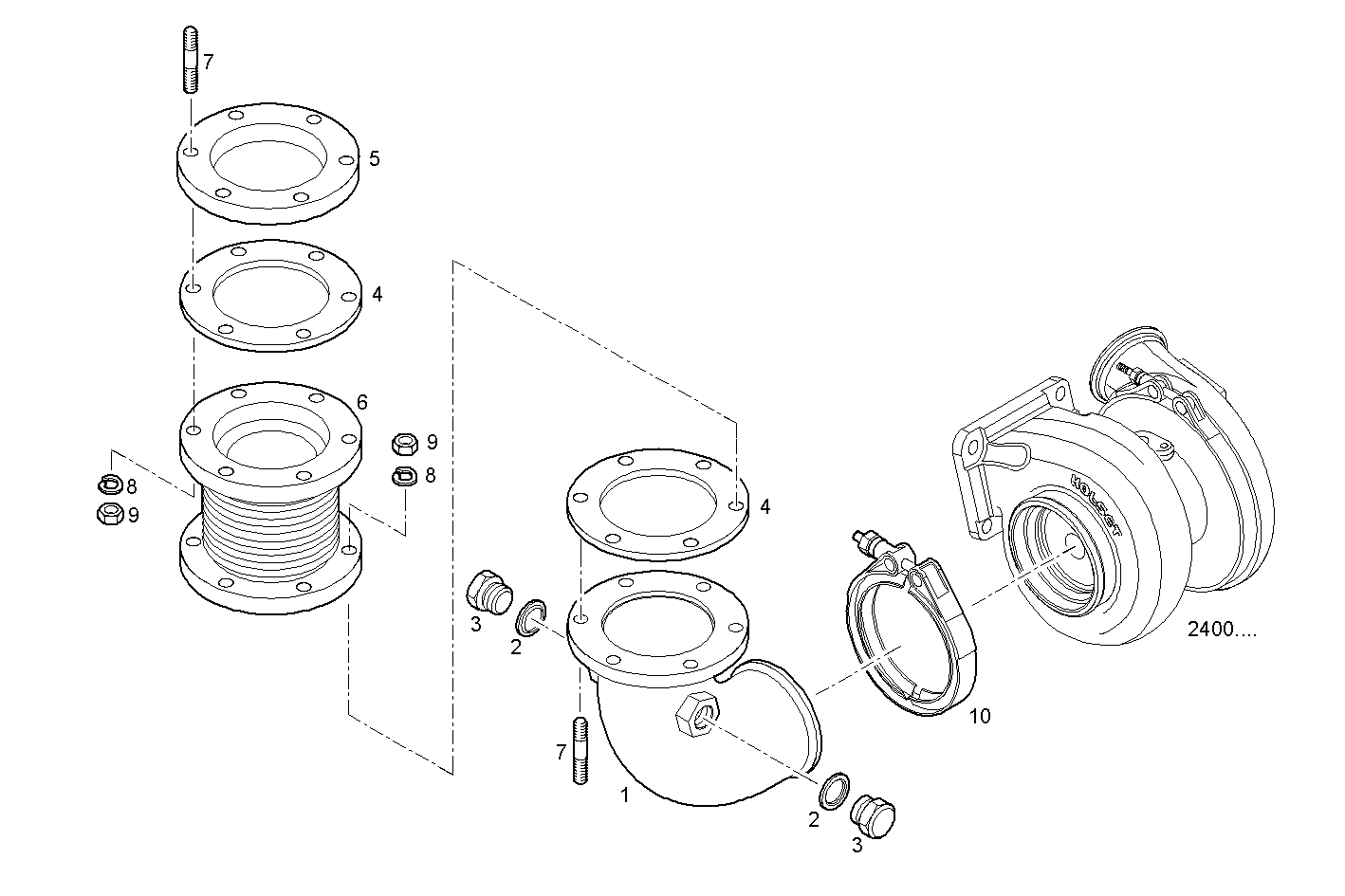

A40030514 EXHAUST PIPE

Iveco/FPT EXHAUST PIPE

Item Part number Description
1 8042773 EXHAUST ELBOW
2 4858607 WASHER Ø12X17 MM SP=1,5 MM
3 16992211 THREADED PLUG M12X1,5
4 8009600 GASKET
5 8103591 FLANGE
6 8024880 EXHAUST BELLOWS
7 16731234 STUD M10X1,5X25
8 17090174 SPRING WASHER Ø10X20 MM
9 17038131 HEXAGON NUT M10
10 500339542 PIPE CLIP
