CURSOR10TE1D.R991

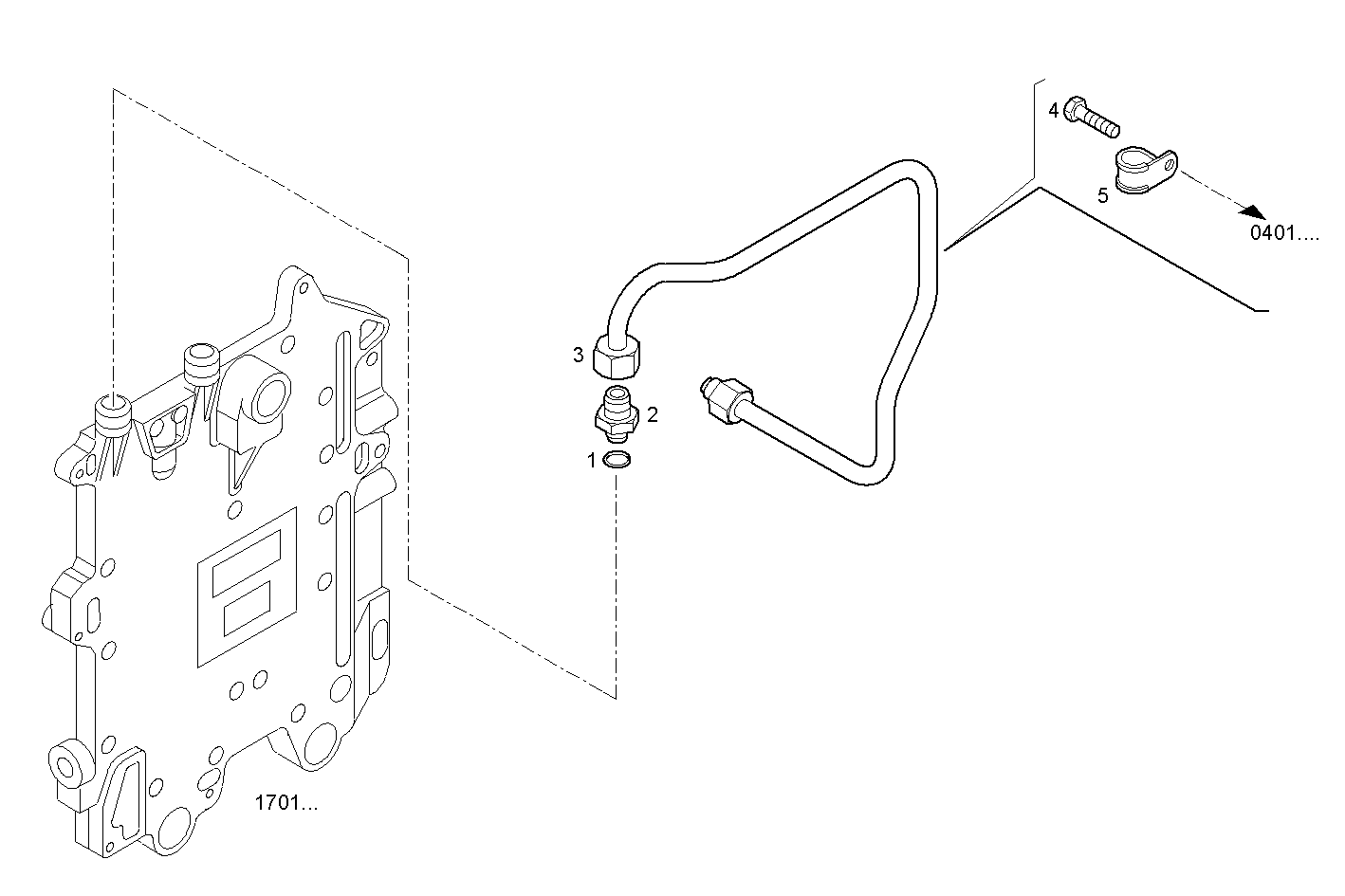

2032.001 FUEL LINES - INLET TO E.C.U.
Item | Part number | Description |
---|---|---|
1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
3 | 504146524 | FUEL LINE |
4 | 16597925 | HEXAGON BOLT M8X14 MM |
5 | 17316592 | PIPE CLIP |
