CURSOR10TE1D.R991

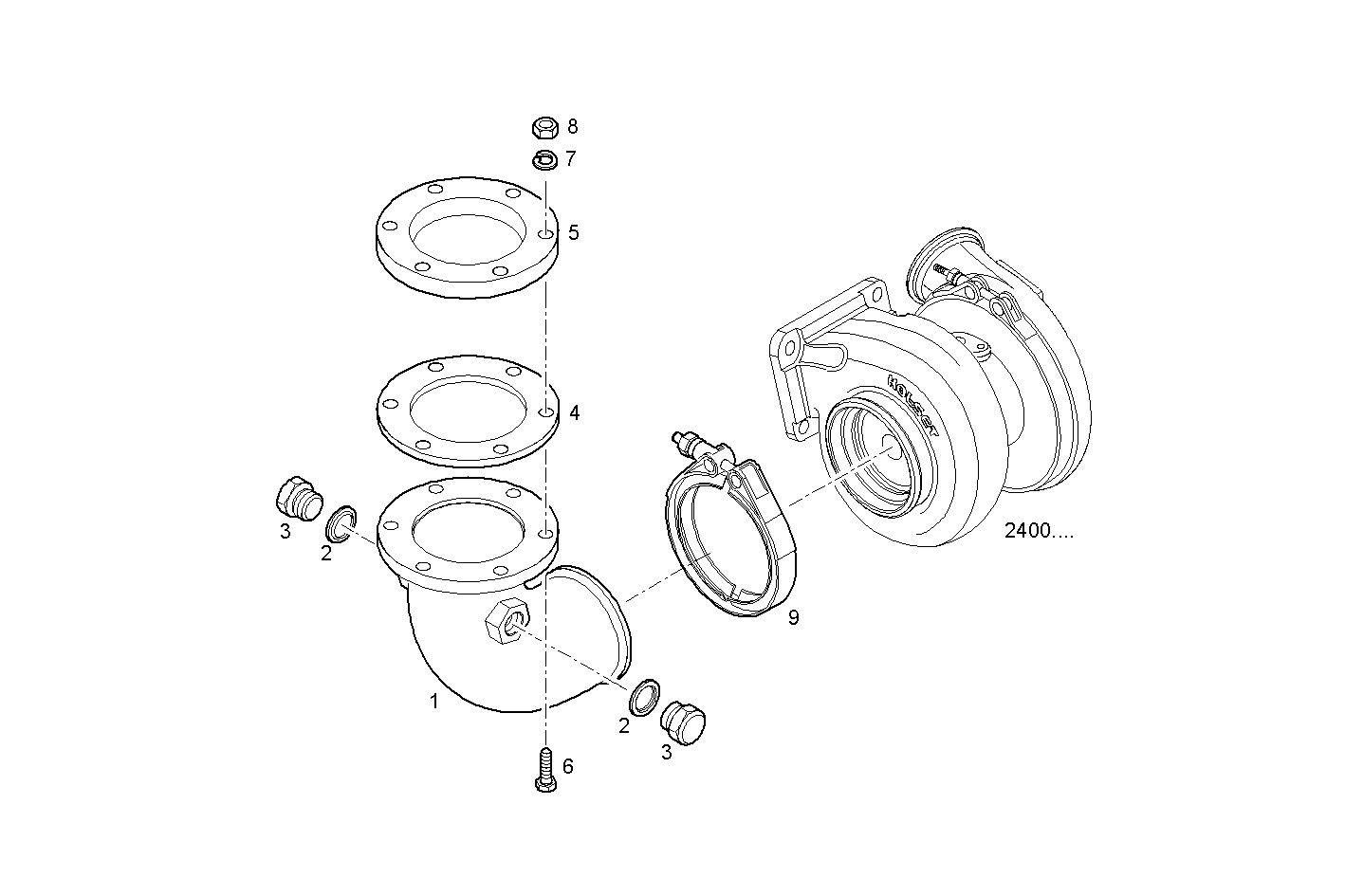

A40000505 UPWARD REAR EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8042773 | EXHAUST ELBOW |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 16992211 | THREADED PLUG M12X1,5 |
| 4 | 8009600 | GASKET |
| 5 | 8103591 | FLANGE |
| 6 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17038131 | HEXAGON NUT M10 |
| 9 | 500339542 | PIPE CLIP |
