CURSOR10TE1D.X001

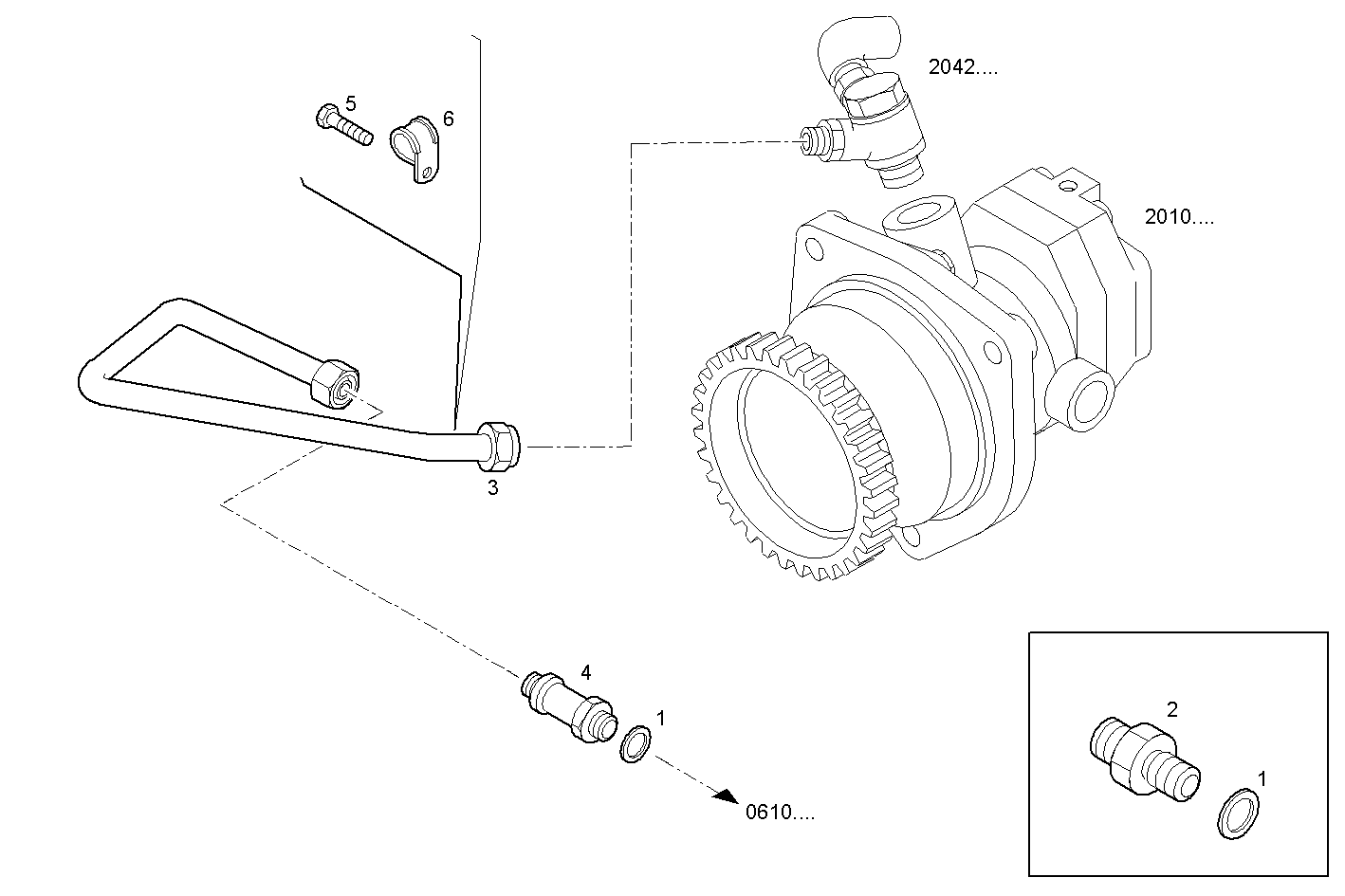

2036.007 FUEL LINES - RETURN TO FUEL PUMP

Iveco/FPT FUEL LINES - RETURN TO FUEL  PUMP

Item Part number Description
1 99489019 WASHER Ø16X24 MM SP=1,5 MM
2 504081274 THREADED UNION M16X1,5 - M18X1,5
3 504200577 FUEL LINE
4 500310076 PIPE SOCKET M16X1,5 - M18X1,5
5 16597925 HEXAGON BOLT M8X14 MM
6 17316592 PIPE CLIP
