CURSOR10TE1F.S550

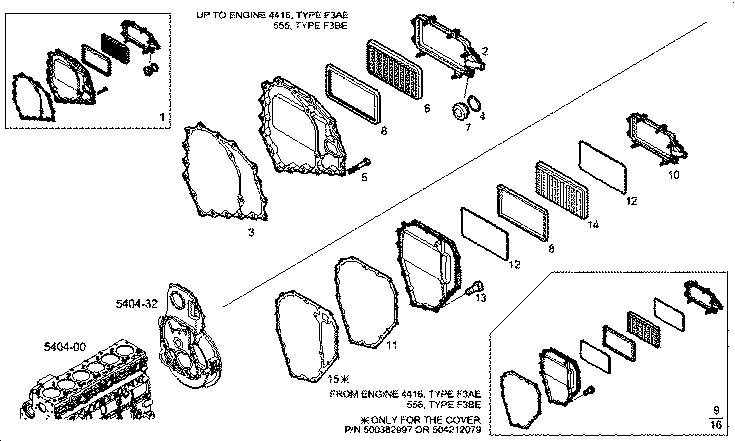

10144 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 500345205 | COVER |
2 | 500321610 | COVER |
3 | 500345207 | FLAT GASKET ENGINE |
4 | 500321612 | FLAT ENGINE GASKET |
5 | 500321614 | CYLIND-HEAD SCREW M6 |
6 | 500311355 | FILTER |
7 | 500343244 | VALVE |
8 | 500398649 | GASKET |
9 | 500382997 | COVER ASSY |
10 | 500361556 | COVER |
11 | 500382999 | FLAT ENGINE GASKET |
12 | 500383043 | GASKET |
13 | 500383042 | CYLIND-HEAD SCREW M6 |
14 | 500383040 | FILTER |
15 | 500383189 | FLAT ENGINE GASKET |
16 | 504359941 | COVER ASSY |
