CURSOR10TE1F.S550

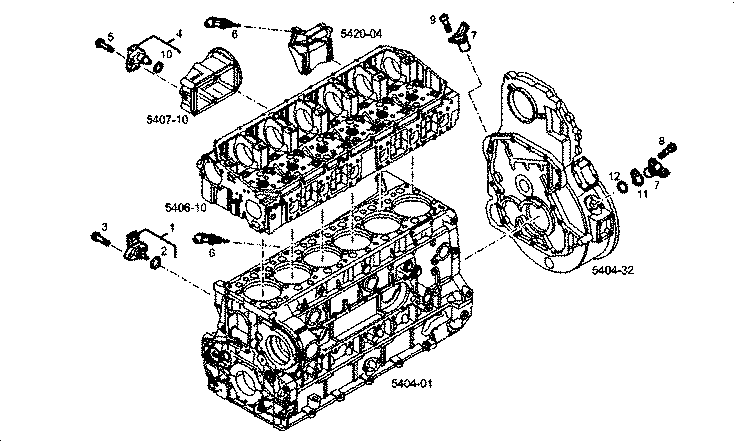

101670 SENSOR
Item | Part number | Description |
---|---|---|
1 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
2 | 4895477 | O-RING |
3 | 4899110 | HEXAGON BOLT |
4 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
5 | 16597225 | HEXAGON BOLT M6X18 MM |
6 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
7 | 504096645 | SENSOR |
8 | 16689325 | CYLIND-HEAD SCREW M6X25 |
9 | 16689024 | CYLIND-HEAD SCREW M6X12 |
10 | 42546555 | O-RING [FROM # 158928] |
11 | 504163664 | CONNECTING PLATE |
12 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
