CURSOR10TE1F.S550

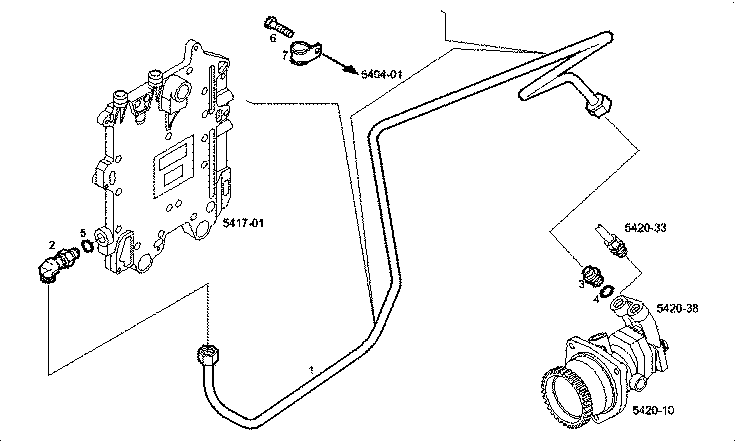

103157 PIPE TO FUEL SUPPLY PUMP

Iveco/FPT PIPE TO FUEL SUPPLY PUMP

Item Part number Description
1 504200500 FUEL LINE
2 16504114 ELBOW COUPLING M18X1,5
3 504081274 THREADED UNION M16X1,5 - M18X1,5
4 99489019 WASHER Ø16X24 MM SP=1,5 MM
5 98474309 WASHER Ø16X24 MM SP=1,9 MM
6 16597925 HEXAGON BOLT M8X14 MM
7 17316592 PIPE CLIP
