CURSOR10TE1F.S550

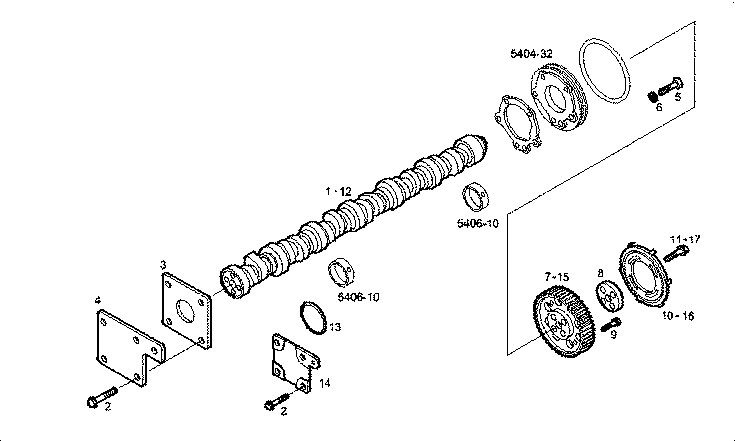

103215 TIMING
| Item | Part number | Description |
|---|---|---|
| 1 | 504092824 | CAMSHAFT |
| 2 | 16587125 | HEXAGON BOLT M10X25 MM |
| 3 | 500370033 | FLAT ENGINE GASKET [UP TO # 73308] |
| 4 | 500370032 | COVER [UP TO # 73308] |
| 5 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
| 6 | 17096824 | WASHER Ø8,40X15 MM |
| 7 | 99450035 | CAMSHAFT PINION |
| 8 | 98496024 | SPACING BAR |
| 9 | 99431774 | BIG-END BOLT |
| 10 | 500336396 | PLATE |
| 11 | 500397562 | HEXAGON BOLT M6X1X22 MM |
| 12 | 504204063 | CAMSHAFT [FROM # 82159] |
| 13 | 17290781 | O-RING Ø78,97X3,53 MM |
| 14 | 504204255 | COVER [FROM # 73309] |
| 15 | 504367235 | GEAR |
| 16 | 504367236 | PLATE |
| 17 | 504367230 | HEXAGON BOLT M8X1,25 |
