CURSOR10TE1F.S550

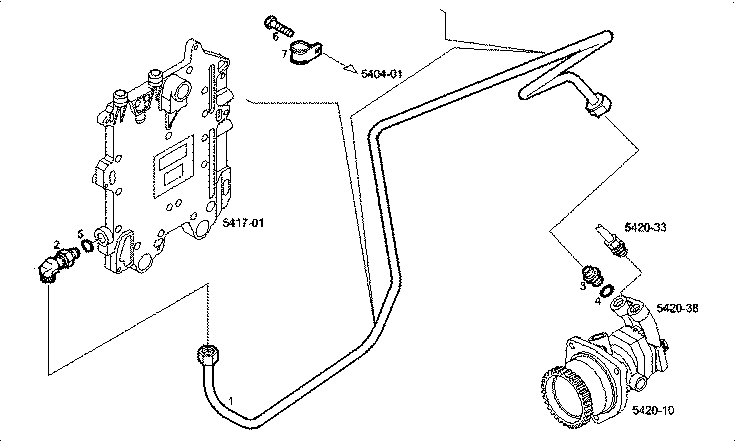

103760 PIPE TO FUEL SUPPLY PUMP
Item | Part number | Description |
---|---|---|
1 | 8045952 | FUEL LINE |
2 | 16504114 | ELBOW COUPLING M18X1,5 |
3 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
5 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
6 | 16597925 | HEXAGON BOLT M8X14 MM |
7 | 17316592 | PIPE CLIP |
