CURSOR10TE1F.S550

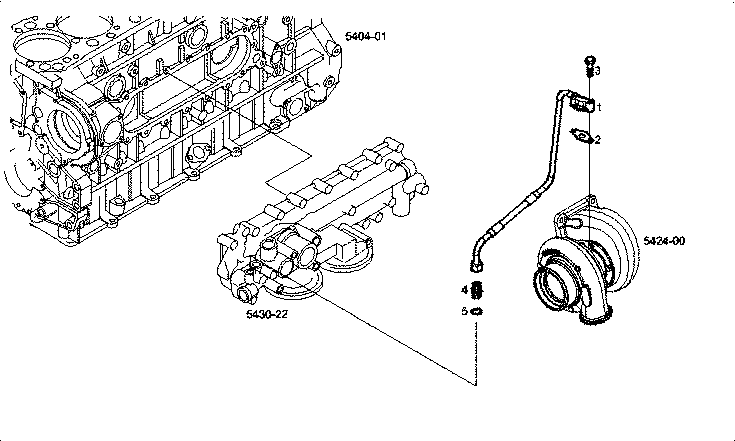

133495 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 5801577622 | OIL LINE |
| 2 | 5801417018 | FLAT GASKET ENGINE |
| 3 | 16586625 | HEXAGON BOLT M8X35 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
