CURSOR10TE1F.S550

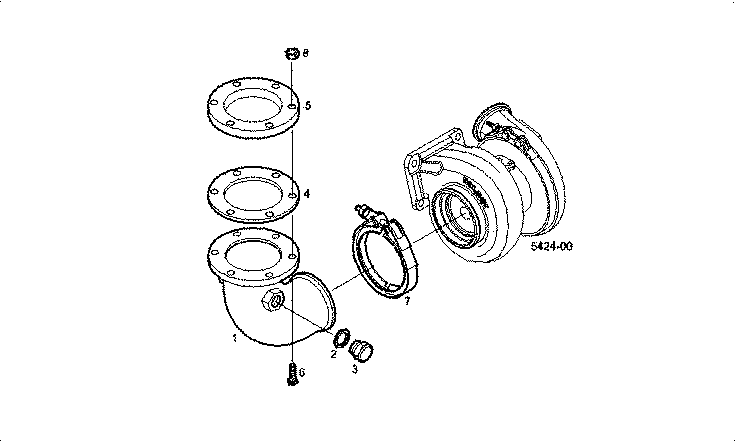

135646 AIR LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8036130 | EXHAUST ELBOW |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 16992211 | THREADED PLUG M12X1,5 |
| 4 | 8009600 | GASKET |
| 5 | 8103591 | FLANGE |
| 6 | 16587325 | HEXAGON BOLT M10X35 MM |
| 7 | 504073261 | CLIP dia. 104 |
| 8 | 17044825 | HEXAGON NUT M10 |
