CURSOR10TE1F.S550

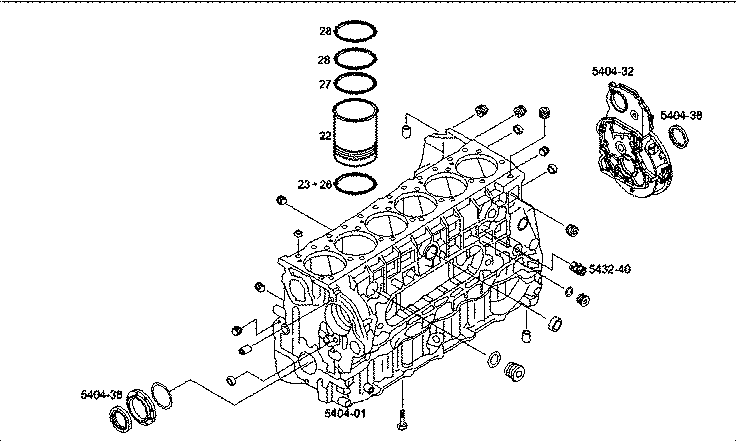

35518 CYLINDER LINE ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 22 | 500338224 | CYLINDER LINER STANDARD |
| 23 | 99432876 | SPAC.RING CYL.LIN. SP=0,08 MM |
| 24 | 99432875 | SPAC.RING CYL.LIN. SP=0,1 MM |
| 25 | 99432873 | SPAC.RING CYL.LIN. SP=0,12 MM |
| 26 | 500378984 | SPAC.RING CYL.LIN. SP=0,14 MM |
| 27 | 99456553 | O-RING |
| 28 | 99456554 | O-RING |
