CURSOR10TE1F.S550

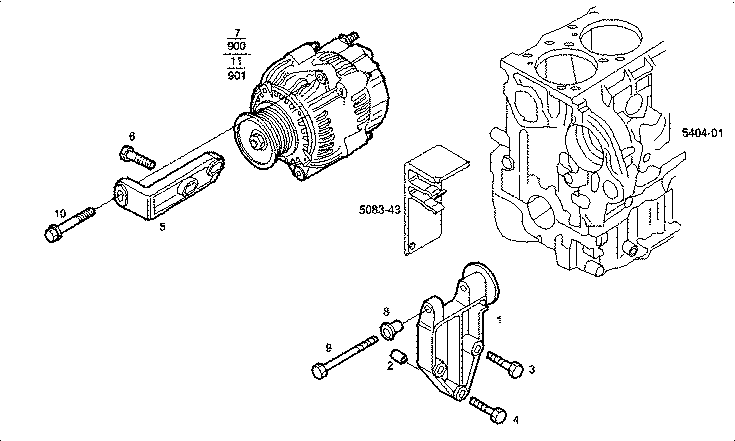

39435 ALTERNATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500346543 | GENERATOR SUPPORT |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 4 | 16587424 | HEXAGON BOLT M10X40 MM |
| 5 | 99458521 | FASTENING BRACKET |
| 6 | 16586525 | HEXAGON BOLT M8X30 MM |
| 7 | 504028095 | ALTERNATOR ASSY |
| 8 | 99484032 | SPACER BUSH |
| 9 | 99474161 | SCREW M10 |
| 10 | 16586625 | HEXAGON BOLT M8X35 MM |
| 11 | 504349338 | ALTERNATOR |
