CURSOR10TE1F.S550

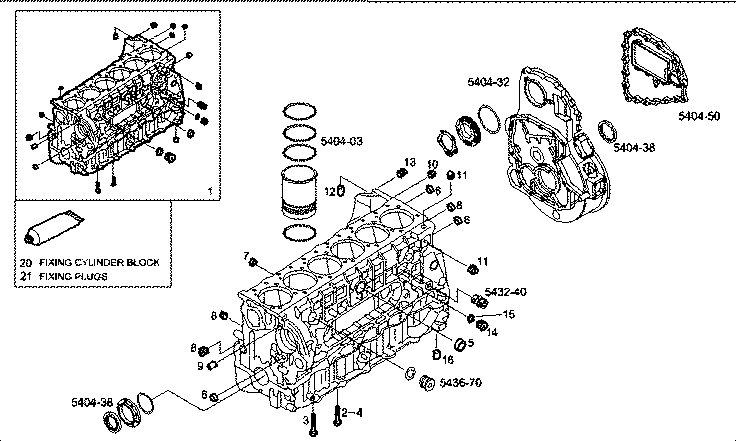

45070 ENGINE BLOCK ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 504130582 | ENGINE CRANKCASE ASSY |
| 2 | 99432869 | HEXAGON BOLT M12X125 MM |
| 3 | 504108191 | HEXAGON BOLT |
| 4 | 99433863 | HEXAGON BOLT M12X58 MM |
| 5 | 16991370 | LOCK PLUG Ø45 MM |
| 6 | 16990870 | LOCK PLUG Ø28 MM |
| 7 | 16990670 | LOCK PLUG Ø22 MM |
| 8 | 504051238 | THREADED PLUG DIAM=3/8" |
| 9 | 504120669 | LOCK PLUG M24X1,5 [FROM # 44746] |
| 10 | 504051237 | THREADED PLUG DIAM=1/4" |
| 11 | 504138062 | PLUG Ø10 MM |
| 12 | 500368916 | OIL NOZZLE |
| 13 | 99433597 | THREADED PLUG M12X16 MM |
| 14 | 16992415 | THREADED PLUG M16X1,5 |
| 15 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 16 | 99467554 | DOWEL PIN Ø14 MM |
| 20 | 2992695 | ADHESIVE/STICKER LOCTITE |
| 21 | 2995644 | ADHESIVE/STICKER |
