CURSOR10TE1F.S550

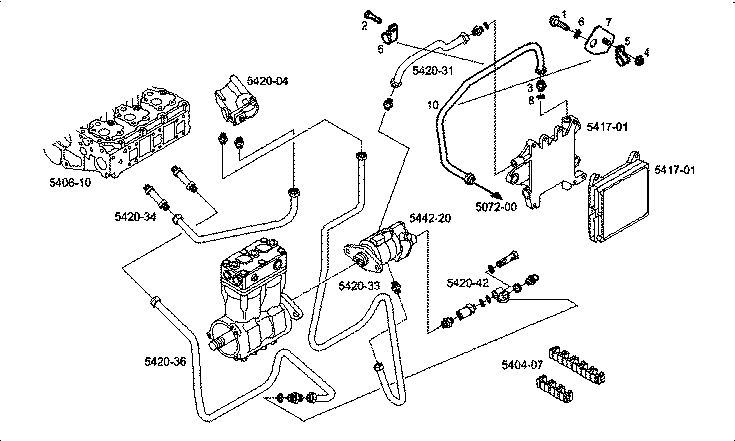

45985 PIPE TO ENGINE E.C.U.
| Item | Part number | Description |
|---|---|---|
| 1 | 1112655 | HEXAGON BOLT M16x20 MM |
| 2 | 16597925 | HEXAGON BOLT M8X14 MM |
| 3 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 4 | 17044725 | HEXAGON NUT M8 |
| 5 | 17316592 | PIPE CLIP |
| 6 | 17798674 | SPRING WASHER |
| 7 | 41213491 | RETAINER |
| 8 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 10 | 504146524 | FUEL LINE |
