CURSOR10TE1F.S550

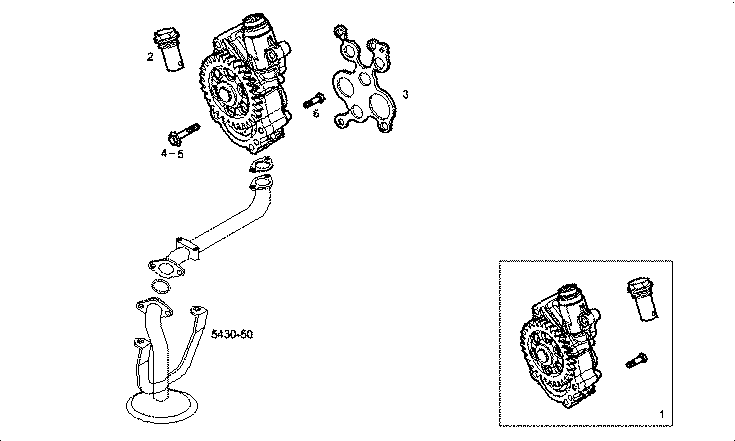

84286 OIL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504332653 | LUBE OIL PUMP |
| 2 | 500359679 | OIL PUMP VALVE |
| 3 | 99452273 | FLAT ENGINE GASKET |
| 4 | 16592525 | HEXAGON BOLT M8X70 MM |
| 5 | 16586625 | HEXAGON BOLT M8X35 MM |
| 6 | 16691024 | CYLIND-HEAD SCREW M8X45 MM |
