CURSOR10TE1F.S550

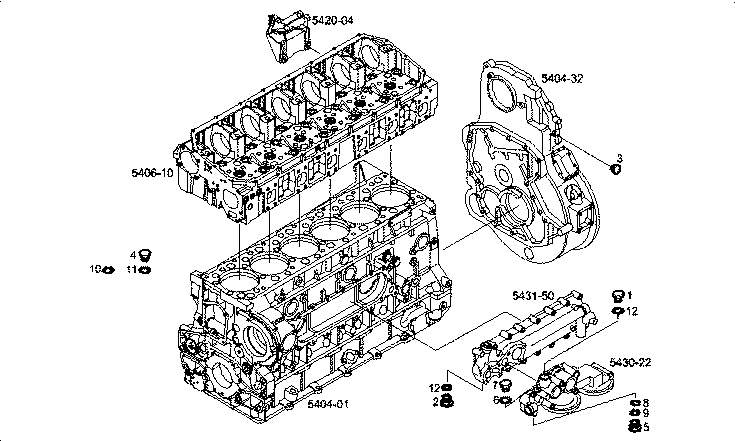

95477 SENSOR
Item | Part number | Description |
---|---|---|
1 | 504084571 | THREADED PLUG |
2 | 10300611 | LOCK PLUG M14X1,5 |
3 | 504051237 | THREADED PLUG DIAM=1/4" |
4 | 16992211 | THREADED PLUG M12X1,5 |
5 | 500337200 | THREADED PLUG [FROM # 50368] |
6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
7 | 16992415 | THREADED PLUG M16X1,5 |
8 | 17278181 | O-RING [FROM # 50368] |
9 | 500337199 | O-RING [FROM # 50368] |
10 | 17277881 | O-RING Ø7,65 MM SP=1,78 MM |
11 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
12 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
