CURSOR10TE1F.S550

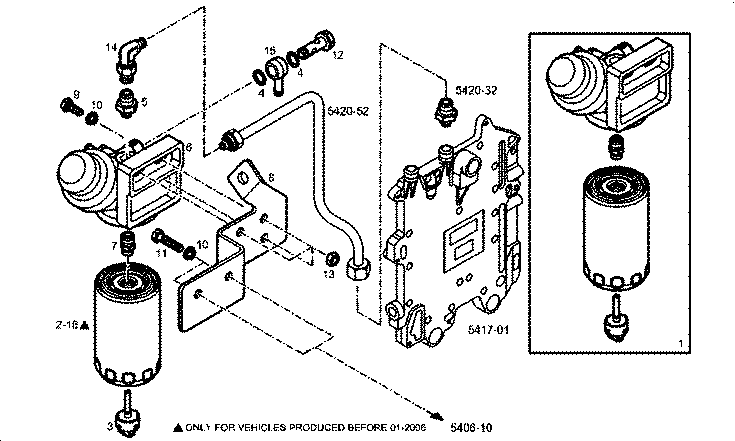

96779 FUEL PREFILTER
Item | Part number | Description |
---|---|---|
1 | 504057743 | PREFILTER ASSY |
2 | 2992662 | FUEL FILTER ELEM. |
3 | 42540203 | SENSOR WATER |
4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
5 | 8014143 | PIPE SOCKET M14X1,5 |
6 | 42545573 | FUEL FILT.SUPPORT |
7 | 42545574 | THREADED UNION |
8 | 8040765 | SUPPORT |
9 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
10 | 17090174 | SPRING WASHER Ø10X20 MM |
11 | 16609424 | SCREW M10x32 MM |
12 | 504266555 | BANJO BOLT M14X1,5X30 MM |
13 | 17038131 | HEXAGON NUT M10 |
14 | 16504114 | ELBOW COUPLING M18X1,5 |
15 | 98413896 | PIPE SOCKET Ø8 MM |
16 | 500039731 | FUEL FILTER ELEMEMT VL |
