CURSOR13TE1F.S550

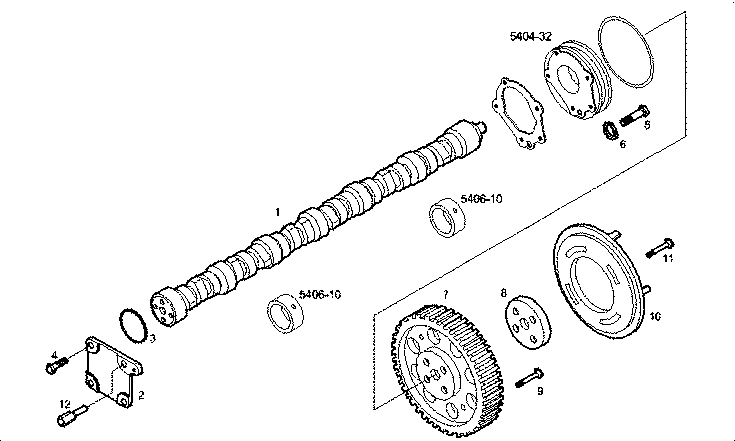

119105 TIMING
| Item | Part number | Description |
|---|---|---|
| 1 | 504227220 | CAMSHAFT |
| 2 | 504204255 | COVER [FROM # 73309] |
| 3 | 17290781 | O-RING Ø78,97X3,53 MM |
| 4 | 16587124 | HEXAGON BOLT M10X25 MM |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
| 6 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
| 7 | 504367235 | GEAR |
| 8 | 98496024 | SPACING BAR |
| 9 | 504367230 | HEXAGON BOLT M8X1,25 |
| 10 | 504367236 | PLATE |
| 11 | 99431774 | BIG-END BOLT |
| 12 | 504093610 | THREADED BUSH M8X1,25/M10X1,5 [FROM # 89378] |
