CURSOR13TE1F.S550

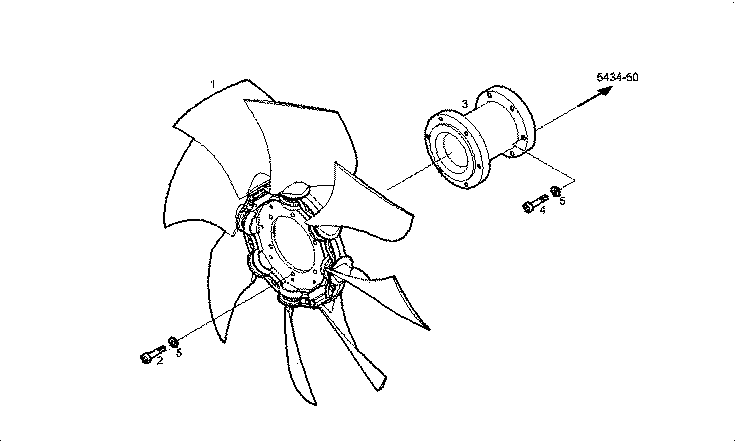

149814 FAN ASSEMBLY
| Item | Part number | Description |
|---|---|---|
| 1 | 5801718080 | BLOWER |
| 2 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
| 3 | 8045747 | HUB |
| 4 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
