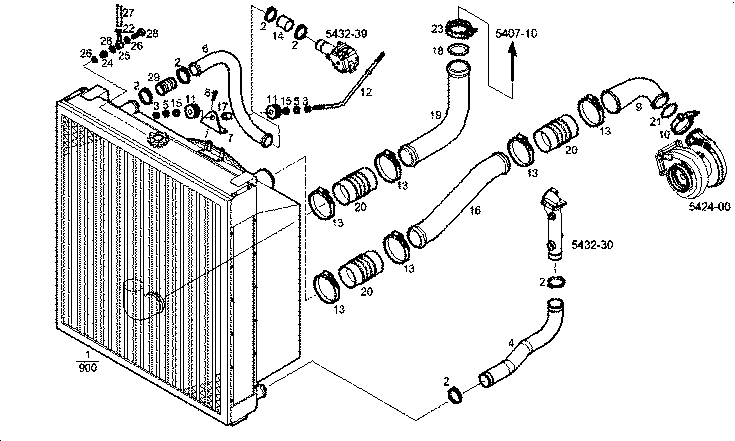

| Item |
Part number |
Description |
|
1 |
5801713443 |
WATER RADIATOR |
|
2 |
17765091 |
CLIP Ø60/80 MM |
|
3 |
17038425 |
HEXAGON NUT M12 (8) |
|
4 |
5801710829 |
RUBBER SLEEVE |
|
5 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
6 |
5801710830 |
WATER PIPE |
|
7 |
8019397 |
RETAINER |
|
8 |
16605534 |
HEXAGON BOLT M8X20 MM (10.9) |
|
9 |
5801791698 |
AIR PIPE/DUCT |
|
10 |
500307975 |
CLIP |
|
11 |
741569 |
RUBBER LUG |
|
12 |
8043420 |
TIE ROD |
|
13 |
17769491 |
CLIP |
|
14 |
5801650437 |
WATER HOSE |
|
15 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
16 |
5801767475 |
AIR PIPE/DUCT |
|
17 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
18 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
19 |
5801710832 |
AIR PIPE/DUCT |
|
20 |
8051465 |
RUBBER SLEEVE |
|
21 |
17290781 |
O-RING Ø78,97X3,53 MM |
|
22 |
18088294 |
CLIP |
|
23 |
99435103 |
CLIP |
|
24 |
4802434 |
THREADED UNION M12X1,5 |
|
25 |
98404884 |
SWIVEL COUPLING |
|
26 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
27 |
18223480 |
HOSE |
|
28 |
504081281 |
SCREW CONNECTOR M12X1,5 |
|
29 |
5801738801 |
RUBBER SLEEVE |
