CURSOR13TE1F.S550

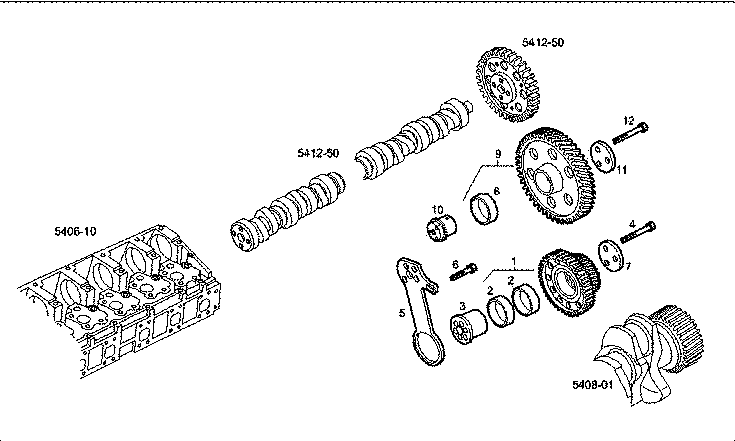

39951 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 500339012 CAMSHAFT PINION ASSY
2 98475174 BUSH
3 500304182 FLANGED HUB
4 16679034 HEXAGON BOLT M12X90 MM
5 500304181 RETAINER
6 18138325 HEXAGON BOLT M8X16 MM
7 500305012 STOP WASHER
8 500304204 DOWEL BUSH
9 500304189 CAMSHAFT PINION ASSY
10 500304187 PIN
11 500305013 STOP WASHER
12 16679134 HEXAGON BOLT M12X100 MM
