CURSOR13TE1F.S550

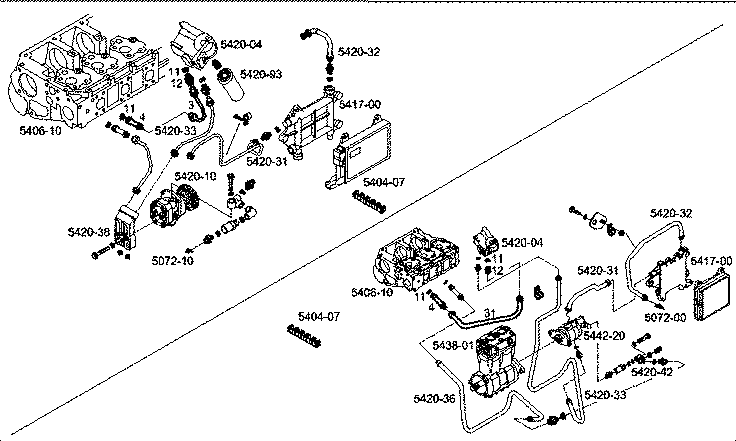

40108 PIPE FILTER TO CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 3 | 500352453 | FUEL LINE |
| 4 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
| 11 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 12 | 41031569 | THREADED UNION M16X1,5 - M18X1,5 MM" |
| 31 | 504056124 | FUEL LINE |
