CURSOR13TE1F.S550

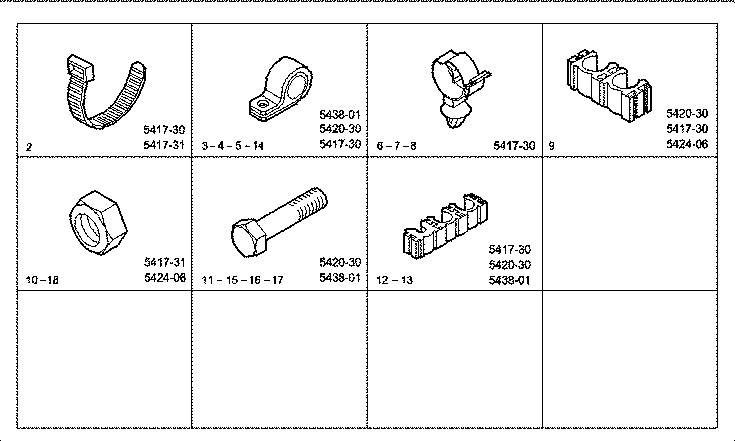

40295 FIXING EQUIPMENT
| Item | Part number | Description |
|---|---|---|
| 2 | 99455033 | CLIP |
| 3 | 17317092 | CLIP |
| 4 | 41202595 | FASTENING BRACKET |
| 5 | 17314990 | FASTENING BRACKET |
| 6 | 504000058 | CLIP |
| 7 | 504000061 | CLIP |
| 8 | 504000063 | CLIP |
| 9 | 504056815 | HITCH ASSY. |
| 10 | 17044625 | HEXAGON NUT M6 |
| 11 | 16585824 | HEXAGON BOLT M6X20 MM |
| 12 | 504056785 | SPRING CLAMP |
| 13 | 504056799 | SPRING CLAMP |
| 14 | 10450990 | PIPE CLIP |
| 15 | 16596924 | HEXAGON BOLT M6X10 MM |
| 16 | 16597925 | HEXAGON BOLT M8X14 MM |
| 17 | 16586325 | HEXAGON BOLT M8X20 MM |
| 18 | 17044725 | HEXAGON NUT M8 |
