CURSOR13TE1F.S550

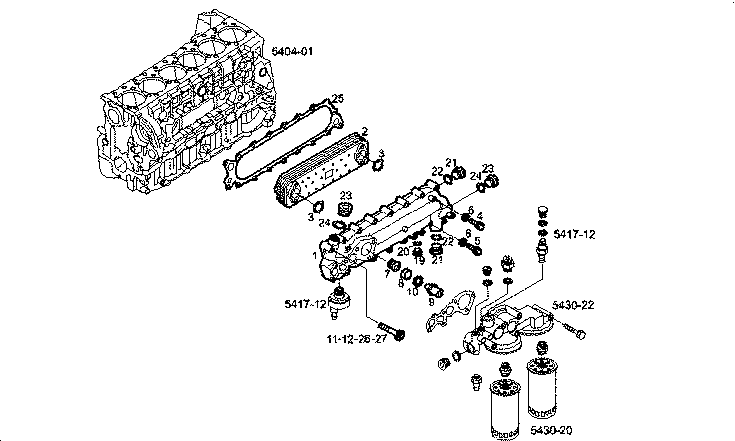

41118 HEAT EXCHANGER

Iveco/FPT HEAT EXCHANGER

Item Part number Description
1 504106451 HEAT EXANGER BODY
2 5801389770 HEAT EXCHANGER
3 17283581 O-RING Ø44,12 MM SP=2,62 MM
4 16586625 HEXAGON BOLT M8X35 MM
5 16586924 HEXAGON BOLT M8X50 MM
6 98474303 WASHER Ø8X14 MM SP=2,3 MM
7 99433799 THREADED PLUG M32X1,5
8 99433798 SPACING BAR Ø28 MM
9 98498322 VALVE
10 98494952 GASKET M35X1,5
11 16586424 HEXAGON BOLT M8X25 MM
12 16598224 HEXAGON BOLT M8X90 MM
19 16992411 THREADED PLUG M16X1,5
20 99489019 WASHER Ø16X24 MM SP=1,5 MM
21 16993711 THREADED PLUG M35X1,5
22 99469380 SEAL GASKET Ø35 MM
23 16993511 LOCK PLUG M28X1,5
24 99432291 SEAL GASKET Ø28 MM
25 98497873 FLAT ENGINE GASKET
26 16586724 SCREW M8X1,25X40 MM
27 504064192 HEXAGON BOLT M8X130
