CURSOR13TE1F.S550

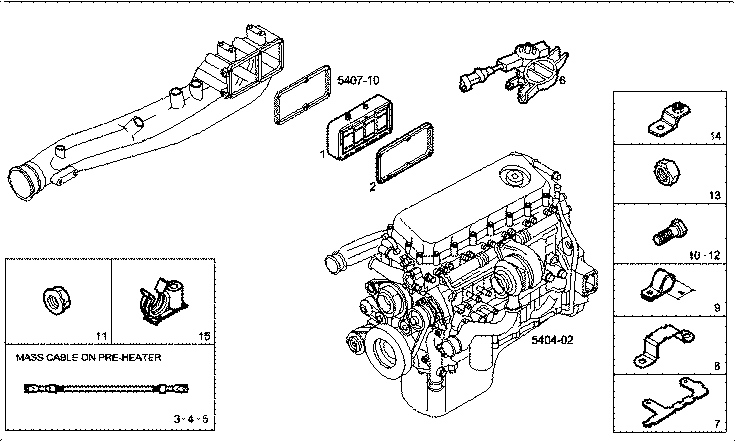

46755 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 99437042 | RESISTOR |
| 2 | 504026624 | FLAT ENGINE GASKET |
| 3 | 504114784 | WIRE/CABLE ASSY |
| 4 | 504114786 | WIRE/CABLE |
| 5 | 41207263 | WIRE/CABLE |
| 6 | 99449300 | RELAY 24v-150a |
| 7 | 504143981 | SUPPORT |
| 8 | 504143982 | SUPPORT |
| 9 | 10450990 | PIPE CLIP |
| 10 | 16585625 | HEXAGON BOLT M6X12 |
| 11 | 17044625 | HEXAGON NUT M6 |
| 12 | 16597925 | HEXAGON BOLT M8X14 MM |
| 13 | 16750225 | HEXAGON NUT M8 |
| 14 | 504143387 | FASTENING BRACKET |
| 15 | 41118378 | CLIP DIAM=3744MM |
