CURSOR13TE1F.S550

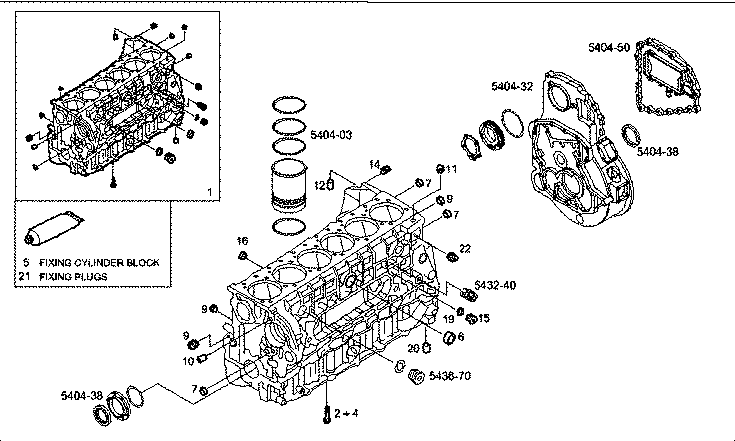

51258 ENGINE BLOCK ASSY

Iveco/FPT ENGINE BLOCK ASSY

Item Part number Description
1 504172361 CRANKCASE
2 504108192 HEXAGON BOLT M18X2X196 MM
3 99432869 HEXAGON BOLT M12X125 MM
4 99433863 HEXAGON BOLT M12X58 MM
5 2995644 ADHESIVE/STICKER
6 16991370 LOCK PLUG Ø45 MM
7 16990870 LOCK PLUG Ø28 MM
9 504051238 THREADED PLUG DIAM=3/8"
10 504120669 LOCK PLUG M24X1,5 [FROM # 44746]
11 504051237 THREADED PLUG DIAM=1/4"
12 500368916 OIL NOZZLE
14 99433597 THREADED PLUG M12X16 MM
15 16992415 THREADED PLUG M16X1,5
16 16990670 LOCK PLUG Ø22 MM
19 99489019 WASHER Ø16X24 MM SP=1,5 MM
20 99467554 DOWEL PIN Ø14 MM
21 2992695 ADHESIVE/STICKER LOCTITE
22 504138062 PLUG Ø10 MM
