CURSOR13TE1F.S550

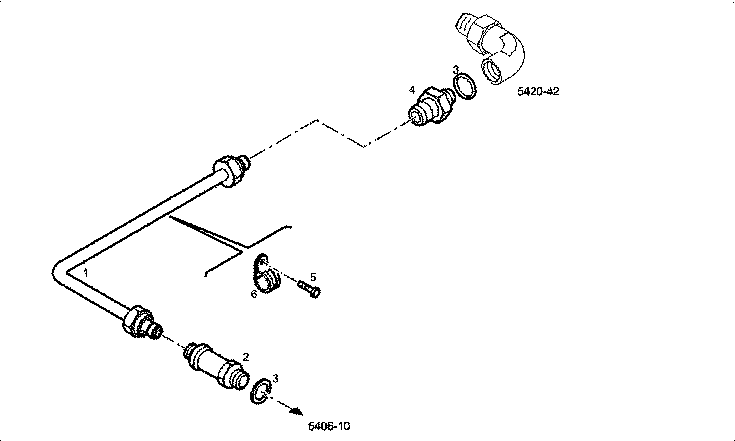

95491 FUEL RETURN PIPE TO PUMP
Item | Part number | Description |
---|---|---|
1 | 504194493 | FUEL LINE |
2 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
5 | 16597925 | HEXAGON BOLT M8X14 MM |
6 | 17316592 | PIPE CLIP |
