CURSOR13TE1F.S550

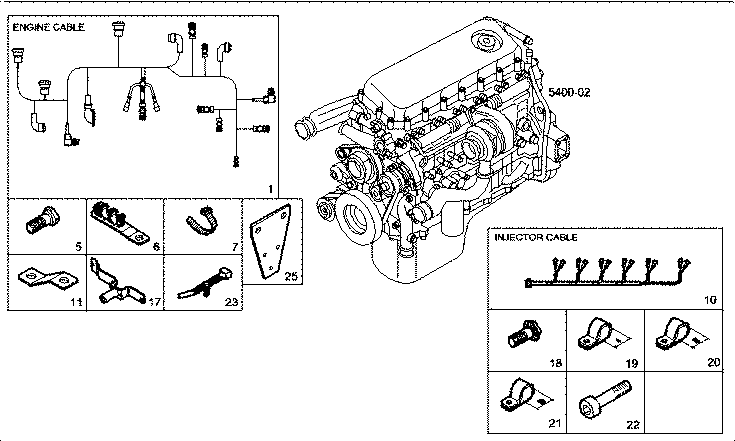

95508 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504116158 | ENGINE HARNESS |
| 5 | 16592225 | HEXAGON BOLT M8X55 MM |
| 6 | 504060889 | RETAINER |
| 7 | 504099833 | CABLE STRAP |
| 10 | 504149937 | WIRE/CABLE |
| 11 | 504049754 | FASTENING BRACKET |
| 17 | 500371778 | FASTENING BRACKET |
| 18 | 11612224 | HEXAGON BOLT M6X12 MM |
| 19 | 17310001 | FASTENING BRACKET Ø4 MM |
| 20 | 17310401 | FASTENING BRACKET Ø8 MM |
| 21 | 17310501 | FASTENING BRACKET Ø10 MM |
| 22 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 23 | 504023286 | CABLE STRAP |
| 25 | 504067009 | RETAINER |
