CURSOR13TE2A.A002

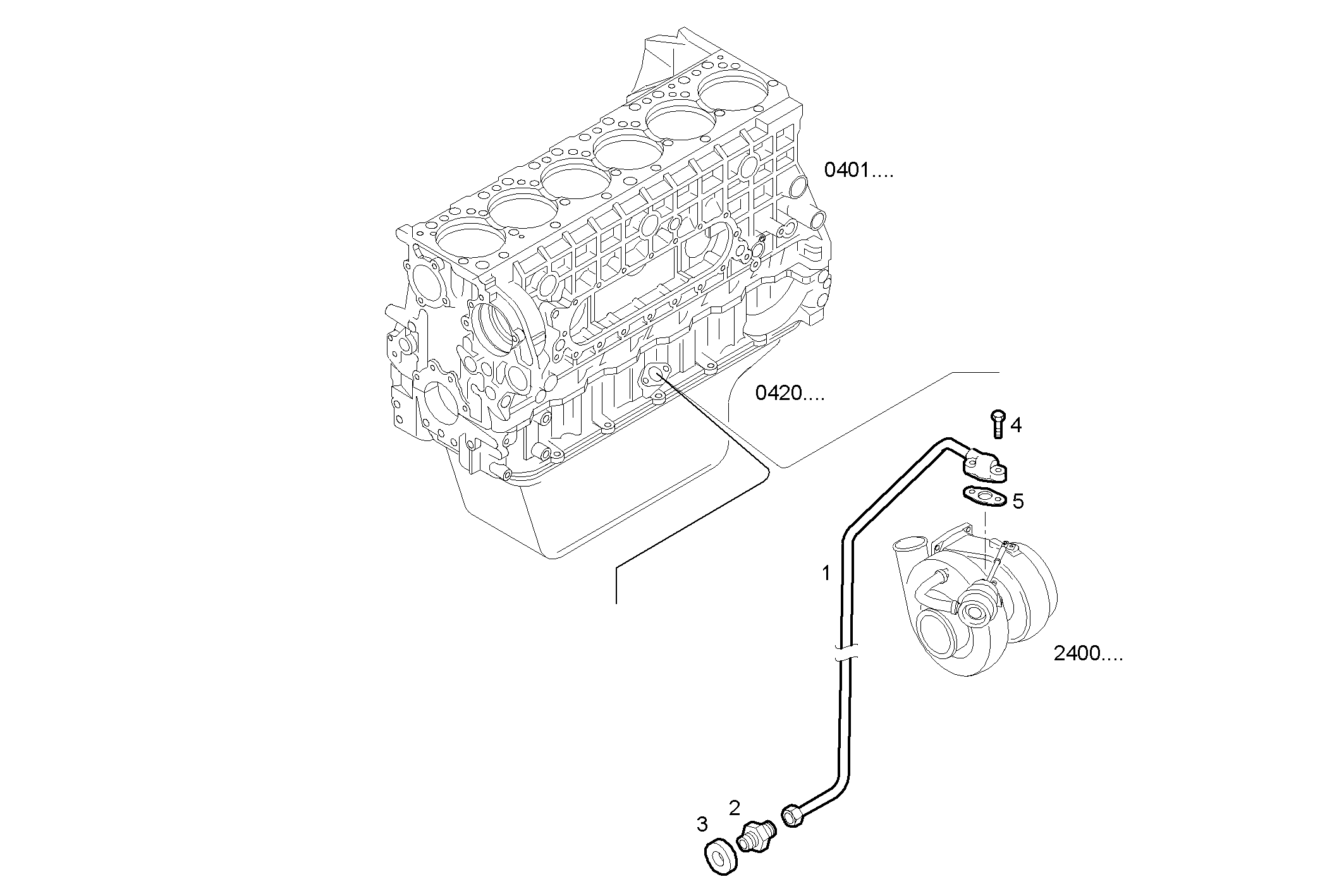

3064.027 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 504050615 | OIL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 16586625 | HEXAGON BOLT M8X35 MM |
| 5 | 504052088 | FLAT ENGINE GASKET |
